Nexans Heat Shrink Terminations Indoor 3 Core PILC 6.6kV-11kV - Nexans SPDI

 Nexans Cable Terminations

Indoor 3 Core

PILC 6.6kV-11kV Cables

Nexans SPDI







Nexans heat shrink cable termination kits (SPDI)  are suitable for terminating high voltage 3 core PILC power cables (paper insulated, lead covered or sheathed)  - Nexans terminations are suitable for indoor applications, such as air insulated high voltage cable end termination boxes.

Nexans Cable Termination Kits - Heat Shrink Termination Kit List

Suits 6.6kV 11kV 12kV

3 Core

• Cable lugs (compression crimp or mechanical shearbolt)
• Water sealing mastic strips
• Anti-track (red) heat shrink tubes for high voltage cable core insulation
• Anti-track heat shrink rain sheds (outdoor cable terminations)
• Stress control heat shrink tubing
• Stress control mastic
• Cable break-outs
• Oil barrier heat shrink tubing of paper insulated cable sealing

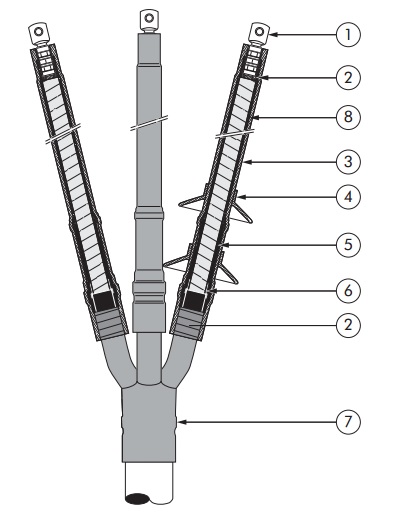

Pictured: Nexans Heat Shrink Terminations Indoor 3 Core PILC 6.6kV-11kV - Nexans SPDI

Nexans heat shrink cable termination kits for indoor 3 core PILC power cables are suitable for the following high voltage cable classes : 6/10 (12kV) and 6.35/11 (12kV).

Nexans high voltage heat shrink cable terminations meet the requirements of CENELEC HD 629.1 and IEC 60502-4.

Nexans Heat Shrink Cable Terminations 11kV

3 Core PILC Cables

SPDI - 11kV 16-25sqmm, 35-70sqmm, 95-150sqmm, 185-500sqmm

Nexans Cable Termination Type	Voltage Class (Um)	Cable cross section (sqmm)
Nexans SPDI Heat Shrink  Indoor 3 Core	12kV	16-25sqmm 35-70sqmm 95-150sqmm 185-500sqmm



Nexans Heat Shrink Cable Terminations 11kV-33kV Catalogue
