Nexans Heat Shrink Terminations Outdoor 3 Core XLPE 6.6kV-11kV-33kV - Nexans SRDF

 Nexans Cable Terminations

Outdoor 3 Core

XLPE 6.6kV-11kV-33kV Cables

Nexans SRDF





Nexans heat shrink cable termination kits (SRDF) are suitable for terminating high voltage three core power cables - Nexans terminations are suitable for outdoor applications, such as pole top cable terminations and overhead line cable terminations.

Nexans Cable Termination Kits - Heat Shrink Termination Kit List

Suits 6.6kV 11kV 12kV 15kV 17kV 24kV 33kV Cables

3 Core

• Cable lugs (compression crimp or mechanical shearbolt)
• Water sealing mastic strips
• Anti-track (red) heat shrink tubes for high voltage cable core insulation
• Anti-track heat shrink rain sheds (outdoor cable terminations)
• Stress control heat shrink tubing
• Stress control mastic
• Cable break-outs

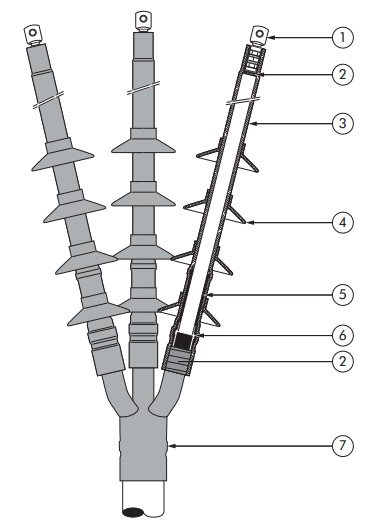

Pictured: Nexans Heat Shrink Terminations Outdoor 3 Core XLPE 6.6kV-11kV-33kV - Nexans SRDF

Nexans heat shrink cable termination kits for outdoor 3 core polymeric (XLPE or EPR) insulated power cables are suitable for the following high voltage cable classes : 6/10 (12kV), 6.35/11 (12kV), 8.7/15 (17.5kV), 12/20 (24kV), 12.7/22 (24kV), 18/30 (36kV) and 19/33 (36kV).

Nexans high voltage heat shrink cable terminations meet the requirements of CENELEC HD 629.1 and IEC 60502-4. Nexans heat shrink cable termination kits are suitable for 3 core polymeric (XLEP & EPR) insulated cables for pole mounted connection to overhead line power networks. Standard heat shrink cable termination kit length is 650mm tails, however longer tail lengths can be kitted for both 11kV and 33kV terminations.

Nexans Heat Shrink Cable Terminations 11kV-33kV - 3 Core Cables

SRDF - 11kV 35-70sqmm, 95-240sqmm, 240-500sqmm
SRDF - 33kV 70-120sqmm, 150-240sqmm, 240-400sqmm

Nexans Cable Termination Type	Voltage Class (Um)	12kV	(17kV&) 24kV	36kV
Nexans SRDF Heat Shrink  Outdoor 3 Core	Cable Cross Section sqmm	35-70sqmm 95-240sqmm 240-500sqmm	35-70sqmm 95-185sqmm 240-400sqmm	70-120sqmm 150-240sqmm 240-400sqmm

Nexans Heat Shrink Cable Terminations 11kV-33kV Catalogue
