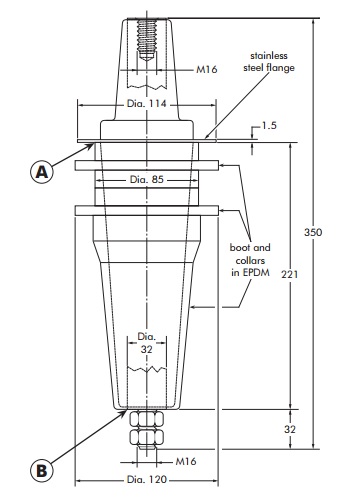

Nexans Euromold Bushings, Air Insulated 24kV 1250A 672TBC Interface D

Nexans Euromold Bushings

Air Insulated 24kV 1250A Bushings



Nexans Euromold 672TBC Interface D







Nexans Euromold HV high voltage bushings are suitable for use in air-insulated high voltage electrical equipment up to 24kV- this includes air-insulated HV bushings for high voltage transformers, motors, switchgear and capacitors. Nexans Euromold bushings are epoxy insulated in accordance with CENELEC EN 50181.



Nexans Euromold plug-in bushings 672TBC meet the requirements of IEC137 with 1250amp current ratings - bolted type 672TBC high voltage bushings are available with ATEX certification for hazardous area zone installations.



Nexans Euromold Air-Insulated Epoxy HV High Voltage Bushings

• 6/10 (12kV)
• 6.35/11 (12kV)
• 8.7/15 (17.5kV)
• 12/20 (24kV)
• 12.7/22 (24kV)

Application : Nexans Euromold 672TBC For use in equipment insulated with air, typically for transformers, switchgear, capacitors...
