Zero Halogen, Flame Retardant Heat Shrink Cable Jointing Kits (Multi Core)

SPS LV Low Voltage Heat Shrink Zero Halogen cable jointing kits are London Underground (LUL) approved for above and below ground installations, this also includes power cable jointing of both single and XLPE multi-core cables (2, 3 and 4 core low smoke fume zero halogen rail cables in tunnels.

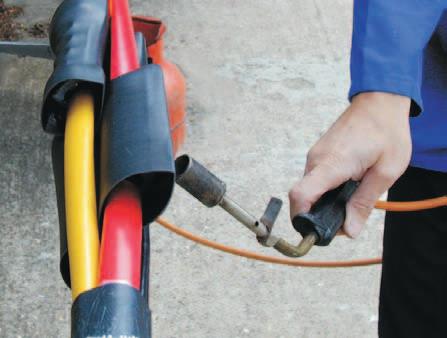

Pictured: Zero Halogen, Flame Retardant Heat Shrink Cable Jointing Kits (Multi Core)

Zero Halogen, Flame Retardant Heat Shrink Cable Jointing Kits (Multi Core)

SPS offer a comprehensive range of heat shrink joints suitable for cable jointing both single and multicore low smoke fume zero halogen rail cables.

Developed for London Underground for use within the rail tunnels and above surface, the cable joint system incorporates flame retardant, non halogen polyolefin heat shrink tubing with a meltable inner liner that itself has excellent flame retardant properties with reduced acid gas emission and smoke generation.

A complete range of multicore and multipair cable joints are available with LU approval.

The cable joints incorporate a flexible outer fire barrier tube that provides a high degree of fire resistance. For cable joint installations outside of the tunnels, this can be omitted.

For ease of use, the heat shrink joints can be supplied with range taking mechanical shearbolt connectors. Slim in profile, the cable joints can be installed in horizontal and vertical planes.

Zero Halogen, Flame Retardant Heat Shrink Cable Jointing Kits (Multi Core) - Product Range
Part Number Cable Range Voltage
SPA NHF 1.5-2.5 1.5-2.5mm² 600/1000V
SPA NHF 4-6 4-6mm² 600/1000V
SPA NHF 10-16 10-16mm² 600/1000V
SPA NHF 25-50 25-50mm² 600/1000V
SPA NHF 70-95 70-95mm² 600/1000V
SPA NHF 120-185 120-185mm² 600/1000V
SPA NHF 240-300 240-300mm² 600/1000V
SPA NHF 400-630 400-630mm² 600/1000V

SPA NHF 800-1000

800-1000mm² 600/1000V
For non armoured joints, omit letter (A) from the part number. Add last digit to part number to indicate the number of cores



Heat Shrink Cable Joints (Fire Resistant) for Shipwiring, Marine & Offshore

BFOU cables feature mica tape around the cable conductor to maintain circuit integrity for 3 hours when exposed to fire in accordance with IEC 60331-21.

Designed to NEK606 and IEC 60092-353 BFOU meets the stringent fire resistant, flame retardant and low smoke emission tests for low voltage power, instrumentation and control cable applications on FPSO, ship and platform installations.

SPS heat shrink BFOU cable joint kits support the integrity of BFOU specification cable installations maintaining service in the event of a fire.
