82212M30F Metering Link Disconnect Box & Mini Pillar

Prysmian Cables and Systems Limited offers a solution for Independent Distribution Network Operators (IDNO's) to connect to Distribution Network Operators (DNO's) networks and monitor power consumption of their private network.

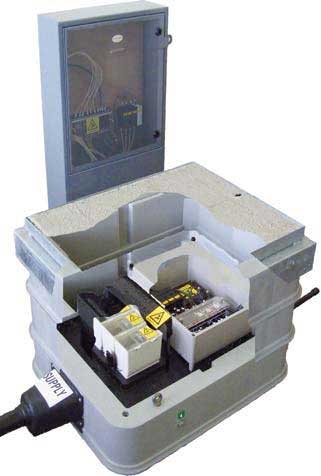

Pictured: Prysmian Metering Link Disconnect Box & Mini Pillar

Prysmian Metering Link Disconnect Box & Mini Pillar

All Prysmian low voltage underground metering link disconnect boxes are tested in-house - testing incorporates a minimum 500Vdc insulation resistance test and core assignment testing.

LV Underground Metering Link Disconnect Box - Prysmian 82212M30F

  • Link chambers
  • Neutral generating post
  • 3 transparent chamber covers
  • 3 "J" type fuse carriers
  • 1 diving bell cover
  • 1 watertight mini-pillar connection cable isolation box
  • 1 concrete cover and steel frame
  • 1 insulated lockable access bar
  • 3 metres of 3 core 300sqmm waveform cable on load/supply side
  • 5 metres of 12 core 2.5sqmm SWA cable for connection to mini pillar

Pictured: Prysmian Metering Link Disconnect Box

Prysmian Metering Link Disconnect Box

Mini-pillar is pre-wired and supplied with:

  • 1 x 13 way current test block
  • 3 x NNS type fuse carriers and 2 amp fuses
  • 1 x NNS type fuse carrier and neutral link
  • M23 cable gland plate for mini-pillar cable connection

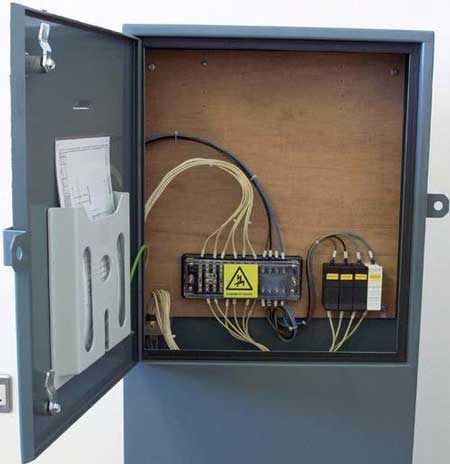

Pictured: Prysmian Mini Pillar

Prysmian Mini Pillar
