Cable & Pipe Seals
Roxtec CRL Transit Frame
The Roxtec CRL seal gives you the ability to run various sizes of cable through the same opening. You no longer have to store countless inserts and hope you have the right one to complete the job.
The Roxtec CRL has been engineered for simplicity and reliability. Ready-made kit packages guarantees that the installers always have the right product on site. Kits are available in two sizes, 4" and 5".
Four different cable configurations are available in each size. Configurations handle from 1 to 9 cables.
Pictured: Roxtec CRL Cable Transit Frame

| Kit | Number of Cables / Pipes | Diameter Range & Number of Cables / Pipes | Weight | Part Ref | ||
| 0+5-16.5mm / 0.0197-0.650 in (CML22w66) | 0+11-29mm / 0.0433-1.142 in (CML33w66) | 0+24-54mm / 0.0945-2.126 in (CML66) | ||||
| CRL 4"/1 | 1 | N/A | N/A | 1 | 0.6kg / 1.323lb | CRL0004010012 |
| CRL 4"/4 | 4 | N/A | 4 | N/A | 0.6kg / 1.323lb | CRL0004040012 |
| CRL 4"/5 | 5 | 3 | 2 | N/A | 0.6kg / 1.323lb | CRL0004050012 |
| CRL 4"/9 | 9 | 9 | N/A | N/A | 0.6kg / 1.323lb | CRL0004090012 |
| CRL 5"/1 | 1 | N/A | N/A | 1 | 0.95kg / 2.094lb | CRL0005010012 |
| CRL 5"/4 | 4 | N/A | 4 | N/A | 0.95kg / 2.094lb | CRL0005040012 |
| CRL 5"/5 | 5 | 3 | 2 | N/A | 0.95kg / 2.094lb | CRL0005050012 |
| CRL 5"/9 | 9 | 9 | N/A | N/A | 0.95kg / 2.094lb | CRL0005090012 |

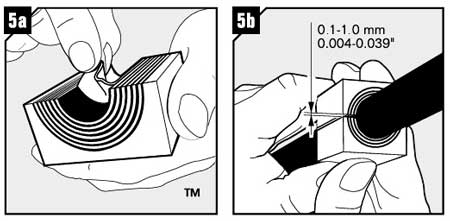

Pictured: Installation of Roxtec Cable Transit Frame CRL Type

5a. Adapt modules which are to hold cables or pipes by peeling off layers until you reach the gap seen in pic 5b
5. Achieve a 0.1-1.0mm gap between the two halves when held against the cable/pipe
