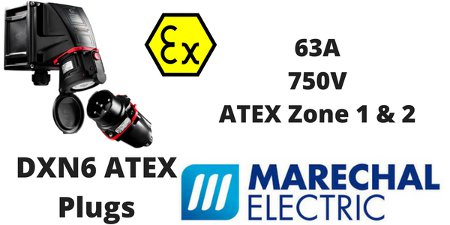

Marechal DXN6 63 Amp Explosion Proof Plugs & Sockets (ATEX) Zone 1 & 2

Marechal Plugs & Sockets

Explosion Proof Plugs - Marechal DXN6 63 Amp

ATEX Hazardous Area Zones 1, 2, 21, 22



Marechal DXN6 plugs and sockets (decontactors) are designed for explosive atmospheres, with ‘ed’ protection mode. Marechal explosion-proof plugs comply with the hazardous area (ATEX) directives dated 23rd March 1994 and 199/92/CE.

Marechal DXN6 plugs and sockets can be used in hazardous area zones 1 and zones 2 (gas) and zones 21 and zones 22 (dust).

DXN6 hazardous area plugs & sockets have an incorporated breaking capacity of AC-22 / AC-23 and have an impact resistant GRP casing.



Marechal DXN explosion proof plugs main applications is for supplying low voltage electrical power to machines and equipments in explosive atmospheres. Versions including 2 auxiliaries are also available (Marechal DXN3:32A/550V; Marechal DXN6: 63A/550V).

Marechal DXN6 63 Amp Explosion Proof Plugs & Sockets (ATEX) Zone 1 & 2 - Technical Specification

Rated Current (with wiring according to standard)	63A
Maximum Voltage	750V
IP Protection Lid Closed	IP66/IP67
IP Protection Connected Plug	IP66/IP67
Shock Resistance	IK09
Ambient Temperature	-40ºC to +60ºC
Flexible Wiring (Min-Max)	6mm² - 16mm²
Stranded Wiring (Min-Max)	6mm² - 25mm²
Other Wiring	On Request
Keying Positions	24
Protection Mode	de
ATEX Zones	1 & 2, 21 & 22

Marechal DXN6 Plugs Load Break Capability

• Temperature rating - Gas temperature classes: T6 for an ambient T° between -40 and +40 °C, T5 for an ambient T° between -40 and +60 °C
• Temperature rating - Dust surface temperature classes: Surface T° ≤87 °C for an ambient T° between -40 and +40 °C Surface T° ≤107 °C for an ambient T° between -40 and +60 °C
• Comply with EN 60309-1 63 A / 750 V



The DXN6 is available in a wide range of voltages and polarity options for both female socket outlets and male inlet plugs:

• 20-24V, 2P
• 190-230V, 3P+E
• 220-250V, 1P+N+E
• 380V-440V, 3P+E
• 380V-440V, 3P+N+E
• 480-500V, 3P+E
• 480-500V, 3P+N+E

♦ Should you require assistance selecting or ordering hazardous area plugs please contact T&D - note all Marechal socket outlets or inlets must be associated with a box, sleeve or handle to create a plug-socket assembly.

Voltage 50Hz	Polarity	Marechal Socket Outlet Female - DXN6 (63A)	Marechal Inlet Male - DXN6 (63A)
20-24V	2P	256408A	256808A
190-230V	3P+E	2564033	2568033
220-250V	1P+N+E	2564015	2568015
380-440V	3P+E	2564013	2568013
380-440V	3P+N+E	2564017	2568017
480-500V	3P+E	2564093	2568093
480-500V	3P+N+E	2564097	2568097

Marechal DXN6 63 Amp Explosion Proof Plugs & Sockets (ATEX) Zone 1 & 2 - Technical Features

Specification	Marechal DXN1	Marechal DXN3	Marechal DXN6
Rated Current (ln)	20A	32A	63A
Umax	550V	750V	750V
Auxiliary Contacts (Optional)	-	2	2
Keying Positions (To distinguish between different power supplies & applications)	24	24	24
Protection Mode	de and tb	de and tb	de and tb
ATEX Zones	Zones 1 & 2 (Gas), Zone 21 & 22 (Dusts)

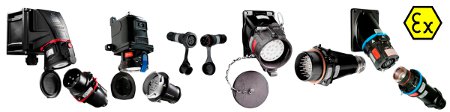

A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal's DXN range of plugs and sockets are suitable for rated currents from 20A up to 63A and maximum voltages from 550V up to 750V.
