CATU Insulating Ladders

Conforms to EN 131 & EN 50528

Insulating ladders are to protect a worker against electrocution whilst working in a potentially hazardous situation - ladders insulate the worker from earth.

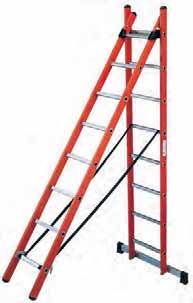

Pictured: CATU Insulating Ladders

Insulating Ladders

CATU insulating ladders are fire resistant and have good strength/weight ratio. CATU's insulating ladders are also resistant to corrosion and aging due to exposure to the elements.

Insulating ladders are available with extended heights. The MP-510/2 10.26m long insulated ladder was selected for use in the Channel Tunnel for maintenance work.

CATU insulating ladders are approved according to EDF specification KR 78 C-B216.

CATU Insulating Ladders - Product Range
Part Ref Description Total Length Number of Rungs Weight
MP-602-D Simple Insulating Ladder 2.41m 8 6kg
MP-603-D Simple Insulating Ladder 2.97m 10 9kg
MP-604-D Simple Insulating Ladder 4.09m 14 10kg
MP-604-D Simple Insulating Ladder 4.93m 17 12kg
Part Ref Description Total Length Folder Total Length Deployed Number of Rungs Weight
MP-624/2-D 2 Section Extension Ladder 2.41m 4.09m 2 x 8 14.9kg
MP-634/2-D 2 Section Extension Ladder 2.70m 4.65m 2 x 9 17kg
MP-514/2 2 sections extension ladders, hand operated 2.41m 4.09m 2 x 8 13.9kg
MP-515/2R 2 sections extension ladders, hand operated 2.97m 5.21m 2 x 10 17kg
MP-506/2 2 sections extension ladders, rope & pulley operated 3.53m 6.05m 2 x 12 22.9kg
MP-508/2 2 sections extension ladders, rope & pulley operated 4.66m 8.30m 2 x 16 35.4kg
MP-509/2 2 sections extension ladders, rope & pulley operated 5.22m 9.14m 2 x 18 39.3kg
MP-510/2 2 sections extension ladders, rope & pulley operated 5.78m 10.26m 2 x 20 43kg
MP-607/2-I 2 sections extension ladders, rope & pulley operated 4.66m 8.02m 2 x 16 30.2kg
MP-608/2-I 2 sections extension ladders, rope & pulley operated 5.22m 9.14m 2 x 18 34.4kg
MP-609/2-I 2 sections extension ladders, rope & pulley operated 5.78m 9.98m 2 x 20 37.8kg
MP-607/3-I 3 sections extension ladders, rope & pulley operated 2.98m 6.89m 3 x 10 24.6kg
MP-608/3-I 3 sections extension ladders, rope & pulley operated 3.82m 8.86m 3 x 13 34.6kg



CATU Insulating Slide Ladders - Product Range
Part Ref Number of Steps Height Access Height Folded Height Based Feet Weight
MP-700-4 3 2.58m 1.39m 0.68m 5.9kg
MP-700-1 4 2.81m 1.64m 0.91m 6.9kg
MP-700-2 5 3.04m 1.89m 1.14m 8kg
MP-700-3 6 3.27m 2.14m 1.37m 9.4kg
MP-700-5 7 3.50m 2.39m 1.60m 11kg
MP-700-6 4 2.93m 1.48m 0.93m 19.5kg
