High Voltage DC Surge Arresters for Railway Industry

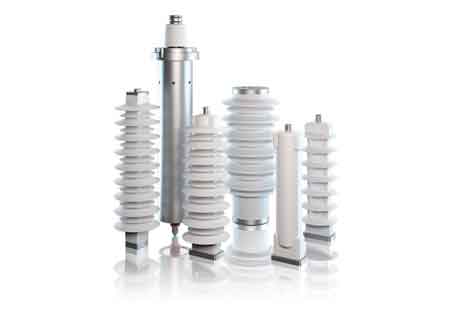

High Voltage DC Surge Arresters provide protection of DC rail power networks against both multiple atmospheric and switching overvoltages as well as Very Fast Transients (VFT). ABB offer a wide selection od surge arresters for railway facilities, which have different voltage networks and special demands. Railway facilities are serviced with both AC and DC arrester types.

ABB POLIM surge arresters are suitable for the protection of high voltage railway networks, indoor and outdoor installations.

ABB POLIM Surge Arrester Advantages:

• Low residual voltage
• Long protection distance
• High energy input capacity
• Stable U-I characteristics even after multiple strokes
• Proof against ageing
• Explosion and shatter-resistant design
• Pollution resistant and UV-stable
• Housing resistant to rough handling
• Maintenance free
• Stable against shock and vibration
• High mechanical resistance



ABB AC / DC Surge Arrester Technical Data For Railway Facilities

Arrester Type	AC / DC	In	Ures / Uc	Ihc	E/Uc	Rectang-ular Wave (t=2ms)	MPSL	Torsion	Vertical Load
ABB MWK / MWD	AC	10kA	3.07	100kA	5.5 kJ/kV	550A	850N	68Nm	1200N
ABB POLIM-I	AC	10kA	3.07	100kA	5.5 kJ/kV	550A	3500N	100Nm	2000N
ABB POLIM-S	AC	10kA	3	100kA	9 kJ/kV	1000A	5700N	100Nm	3000N
ABB POLIM-H	AC	20kA	3.19	100kA	13.3 kJ/kV	1350A​	8000N	100Nm	4000N
ABB POLIM-C..ID	DC	10kA	3.2	100kA	4.3 kJ/kV	550A	-/-	-/-	-/-
ABB POLIM-C..ND	DC	10kA	3.2	100kA	4.3 kJ/kV	550A	690N	50Nm	1000N
ABB POLIM-H..SD	DC	20kA	2.7	100kA	10.5 kJ/kV	1350A​	2500N	50Nm	1000N
ABB POLIM-H..ND​	DC	20kA	2.7	100kA	10.5 kJ/kV	1350A​	8000N	100Nm	4000N
ABB POLIM-X..ND​	DC	20kA	2.7	200kA	21 kJ/kV	2700A	16000N	100Nm	1500N
ABB POLIM-R..-1ND​	DC	20kA	2.7	100kA	10.5 kJ/kV	1350A​	-/-	-/-	-/-
ABB POLIM-R..-2ND​​	DC	20kA	2.4	200kA	19 kJ/kV	2400A	-/-	-/-	-/-
ABB POLIM-ID	DC	40kA	3	400kA	37.8 kJ/kV	4860A	-/-	-/-	-/-
