Ridgiduct Power ENATS 12-24 Polypipe (Standard Sizes)

Polypipe - Ridgiduct Power ENATS 12-24 British Standard

Power Cable Duct - Polypipe

Polypipe's Ridgiduct is a twin wall system, specifically engineered to provide a light, yet robust alternative to conventional cable protection.

It is manufactured in HDPE and the resulting stiff, yet flexible, twin wall structure easily outperforms alternative products.

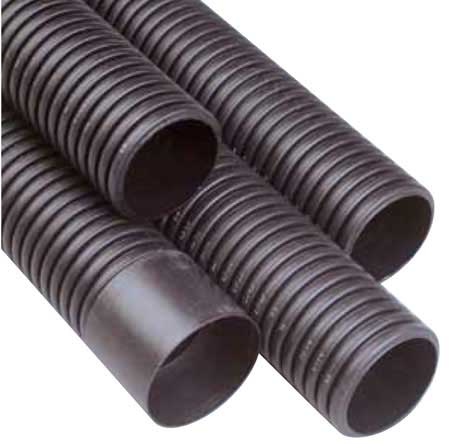

Pictured: Ridgiduct Power ENATS 12-24 Polypipe (Standard Sizes)

Independently certified to British and European Standards, it’s used on a variety of projects including highway, rail, commercial and infrastructure. It complies fully with the electrical supply industry specification for cable protection, ENATS.

Ridgiduct Power ENATS 12-24 Polypipe (Standard Sizes) - Key Features

• Complies with ENATS 12-24 Class 2, 450N at 50°C.
• Complies with BS EN 61386-24 750N, normal duty impact.
• A preferred choice of regional electricity companies
• Integral coupler
• Low weight, flexible, durable and high strength
• Good impact resistance, even at low temperatures
• Available in an alternative twin wall split duct form for easy installation around existing cables with minimal change in strength

Ridgiduct Power ENATS 12-24 Polypipe (Standard Sizes) - Product Range

Polypipe Ridgiduct Part Ref	Inner Duct Diameter	Outer Duct Diameter	Length	Pack QTY
RB7100X2	100mm	118mm	2m	85
RB7100X3	100mm	118mm	3m	85
RB7100X6	100mm	118mm	6m	85
RB125X2	125mm	148mm	2m	46
RB125X3	125mm	148mm	3m	46
RB125X6	125mm	148mm	6m	46
RB150X2	150mm	178mm	2m	36
RB150X3	150mm	178mm	3m	36
RB150X6	150mm	178mm	6m	36
