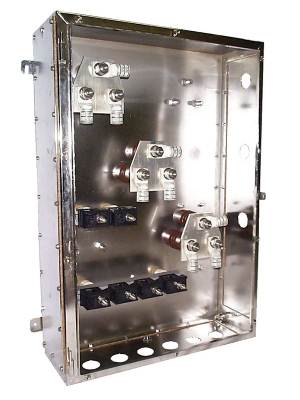

Abtech LR52 LH (200)

Abtech LR52 (200)

HV Electrical Enclosures & Junction Boxes

ATEX & IECEx Zone 1 & Zone 2 Enclosures & Junction Boxes



Abtech LR52 LH (200) ATEX & IECEx Enclosure Specifications

Width (mm)	Height (mm)	Depth (mm)	Maximum Current (A)	Maximum Voltage (kV)	Maximum Ways	Max. Conductor Size (sqmm)
510	510	200	1250	3.3	2	240



Abtech LR52 LH High Voltage Enclosure Features :

• Stainless steel or mild steel electrical enclosures
• IP66 or IP67 ingress protection
• 16-630sqmm cable conductors accommodated
• Shell/ERA deluge specification tested

ATEX certified electrical enclosures for Category 2 Zone 1 and Category 3 Zone 2 hazardous areas.

Custom built stainless steel electrical electrical enclosures for high voltage, hazardous area electrical cable connections are available.

Abtech Cable Gland and Adaptor - Hazardous Area Catalogue

Zone 1, Zone 2 ATEX Certified Enclosures, 3.3kV - Abtech LR52 (200)
