Lucy House Service Connector Boxes (MLNS)

Lucy House Service Cut-outs

Lucy Switchgear MLNS Connector Boxes



Lucy Switchgear House Service Connector Boxes are available as 5 way and 6 way single pole units for terminating up to 35sqmm cables.

Lucy Switchgear house service connector boxes are suitable for live and neutral connections and conform to BS7657.

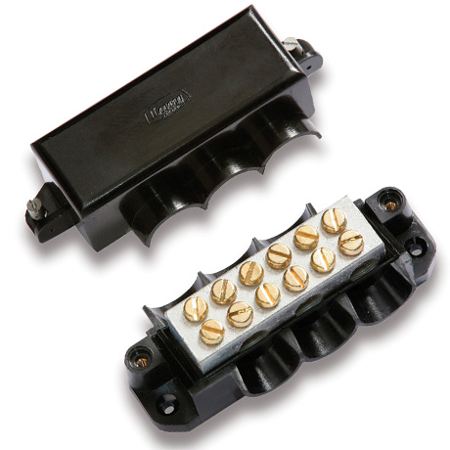

Pictured: Lucy House Service Connector Boxes (MLNS)



MLNS Connector Box - Lucy Switchgear MLNS5

• Conforms to BS 7657: 1993 specification
• Moulded in grey glass filled engineering thermoplastic
• Moulded shield for each cable exit
• Single pole
• 5 way connector box
• Used for live and neutral connections
• Alternative labelled cover when used as earth block
• Sealing wire facility
• Two terminal pinch screws for each cable entry
• Termination block machined from brass, with serrated cable bores
• Accepts 2 x 35sqmm cables at bottom and 3 x 35sqmm cables at top

MLNS Connector Box - Lucy Switchgear MLNS6

• Moulded in black phenolic thermoset material
• Single pole
• 6 way connector box
• Captive sealing screws
• Sealing wire facility
• Two terminal pinch screws for each cable entry
• Termination block machined from brass, with serrated cable bores
• Accepts 2 x 70sqmm cables at bottom and 3 x 70sqm cables at top



T&D together with Lucy also offer Heavy Duty Cut Outs HDCO 200A, 400A, 600A.

Lucy Switchgear House Service Connector Box - 5 Way/6 Way - Lucy MLNS5/MLNS6

Lucy Switchgear MLNS 5/6 Way Terminal Blocks - Specification
