Abtech MJB HV Hazardous Area Electrical Enclosures ATEX IECEx Rated





Abtech MJB HV Hazardous Area (ATEX & IECEx) Electrical Enclosures

Abtech MJB high voltage hazardous area electrical enclosures and junction boxes provide safe power distribution for 3.3kV, 6.6kV and 8.3kV systems up to 240sqmm cables – ATEX certified for Zone 1 and Zone 2 connection of HV cables in hazardous area locations.

The high voltage junction box is suitable for low temperature applications and is DTS-01 deluge tested.

Abtech MJB high voltage (HV) cable junction boxes are manufactured from 316L stainless steel and used primarily for jointing cables or as a connection box, the MJB is suitable for up to 4 phase connections (top and bottom) and a maximum of 8.3kV.

Abtech MJB Range HV Hazardous Area (ATEX & IECEx) Electrical Enclosures Specifications
Abtech Part Number  Width (mm)  Height (mm)  Depth (mm)  Power Rating
(W)
Maximum
Voltage (kV)
Maximum
Ways
Maximum
Conductor
Size (sqmm)

MJB65  510 510 200 16 6.6 4 95
MJB85  510 510 300 16 8.3 4 35
MJB66  510 780 200 23 6.6 4 120
MJB86  510 780 300 23 8.3 4 35
MJB67  650 950 200 33 6.6 4 240
MJB87 650 950 300 33 8.3 4 240
MJB68 800 1250 200 50 6.6 4 240
MJB88  800 1250 300 50 8.3 4 240


Abtech MJB High Voltage Enclosure Features

  • Stainless steel or mild steel electrical enclosures
  • IP66 or IP67 ingress protection
  • 16-240sqmm cable conductors accomodated
  • Shell/ERA deluge specification tested
  • ATEX certified for Category 2 Zone 1 and Category 3 Zone 2 hazardous areas

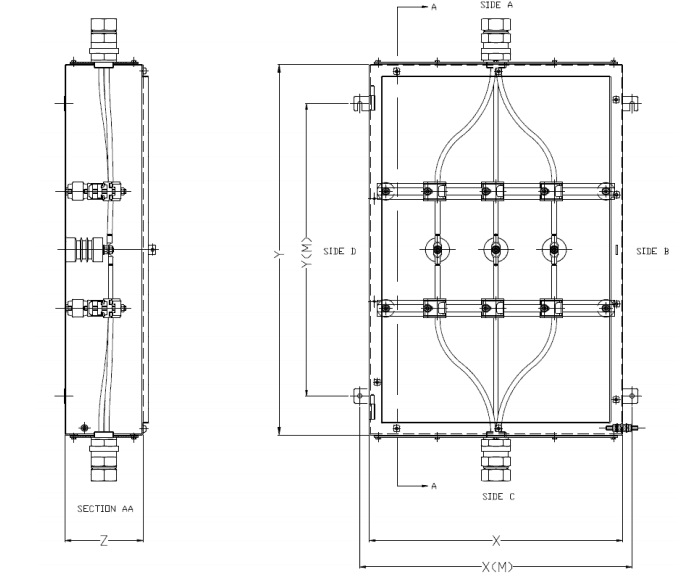

Abtech MJB General Arrangement HV Enclosure Drawing

Abtech MJB General Arrangement HV Enclosure Drawing
