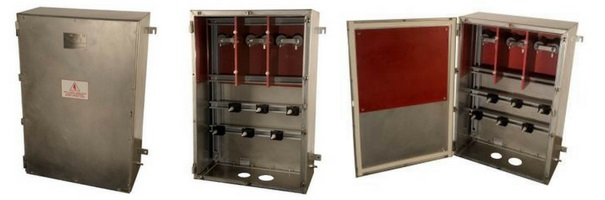

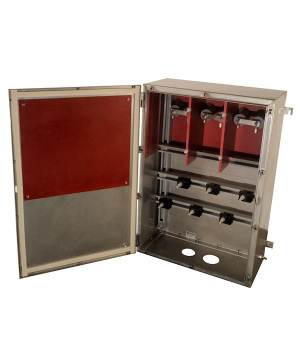

Abtech ABJB HV Hazardous Area (ATEX & IECEx) Rated Electrical Enclosure

Abtech ABJB HV electrical enclosure is based upon the HVJB enclosure and is suitable for up to 15kV cables. Fully ATEX & IECEx hazardous area compliant, the ABJB enclosure is available in two different sizes accomodating up to three phases per size for high voltage cable connecting, terminating and jointing in Zone 1 hazardous areas.

The range of Abtech ABJB electrical enclosures is suitable for up to 15kV HV cables and 980A LV cables and features a 45kA for one second fault rating.

IP66 ingress protection and constructed from 2mm 316l stainless steel.

Abtech ABJB ATEX & IECEx Electrical Enclosure Ratings
Product
Reference
Width
(mm)
Height
(mm)
Depth
(mm)
Maximum
Power
Rating (W)
Maximum
Voltage
(kV)
Maximum
Current
(A)
Maximum
Conductor
Size
(mm2
ABJB-72(x-x) 650  950 300  259  15 980 1000
ABJB-73(x-x) 650  950 300  259  15 980 1000
ABJB-74(x-x) 650  950 300  259  15 980 1000
ABJB-82(x-x) 800 1250 300  346 15 980 1000
ABJB-83(x-x) 800 1250 300  346 15 980 1000
ABJB-84(x-x) 800 1250 300  346 15 980 1000



Abtech ABJB ATEX & IECEx Enclosure Standard Specifications

  • Enclosure Type: High Voltage
  • Ingress Protection: IP66 to EN60529, Type 4X, DTS-01
  • Impact Resistance: >7Nm
  • Material: 2mm 316L Stainless Steel (EN 1.4404) enclosure with orbital finish, silicone gasket and captive 316 stainless steel fasteners, 3mm 316L (EN 1.4404) Stainless Steel gland plates
  • Ambient Temp Rating: -20ºC to +40ºC
  • Maximum Cable Terminations: 3 conductors per phase in & 3 conductors per phase out
  • No. of Gland Plates: Dependant upon configuration
  • Crimp Lugs: 16sqmm to 1000sqmm
  • ​Earthing: Via studs on electrical enclosure, door and gland plates
  • Mounting: Via external mounting feet

Hazardous Area Certification

  • Area Classification: Zone 1 & 21, Gas and Dust / Class 1 Division 2 / GOST-R
  • Type of Protection: Ex e (Increased Safety), Ex tb (Dust Protected), Ex op is (optical radiation, inherently safe)
  • Apparatus Coding: Ex e IIC T4 Gb, Ex tb IIIC T70ºC Db / Ex e IIC T150ºC Gb, Ex tb IIIC T110ºC Db
  • Certificate Number: ATEX: Sira 02 ATEX3266, Sira 99 ATEX3171X / IECEx: SIR 12.0069, SIR 05.0047X

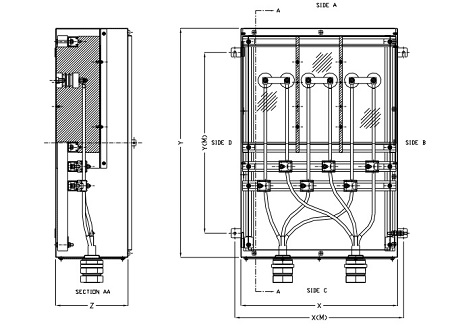

Abtech ABJB HV Hazardous Area (ATEX & IECEx) Electrical Enclosure - Dimensions

Abtech ABJB HV Hazardous Area (ATEX & IECEx) Electrical Enclosure - Dimensions

Abtech HVJB X (M)  Y Y(M)  X
HVJB73  650mm 700mm 950mm 750mm 300mm
HVJB74 650mm 700mm 950mm 750mm 300mm
HVJB83  800mm 850mm 1250mm 1050mm 300mm
HVJB84 800mm 850mm 1250mm 1050mm 300mm
