11kV Cable Joints, Single Core - 3M Cold Shrink

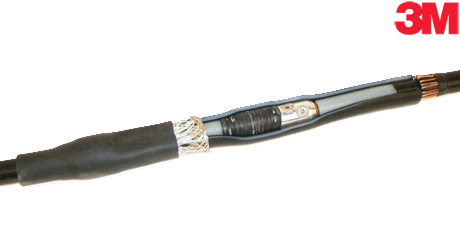

3M QS1000 Cold Shrink Cable Joint - Single Core - 11kV

3M Cold Shrink : High Voltage Cable Joints & Cable Terminations

Single Core XLPE EPR Cable Joints 11kV - 3M Cold Shrink



3M Cold Shrink QS1000 11kV single core high voltage polymeric cable joints offer fast, safe and simple cable installations without the dangers and hassles of “hot-working” associated with heat shrink joints - no naked flames, no gas torches, no ignition tools, no “hot-work” permit applications.

3M Cold Shrink high voltage cable joints satisfy all industrial and utility power cable jointing applications including : polymeric straight inline, transition inline, trifurcating, trifurcating transition, branch (breeches), pot-end (live cable end seal) and loop cable joints for 11kV networks.

3M Cold Shrink 11kV Single Core Polymeric Cable Joints - Benefits :

  • Excellent 3M Cold Shrink electrical insulating performance at 6.6kV-11kV
  • Hydrophobic properties - waterproof for underground and cable tray joints
  • Excellent high and low temperature operation
  • Cold Shrink joints require no heat at all - less tools, less risk, improved safety
  • Non-flammable silicone rubber Cold Shrink joints
  • One-part  11kV cable joint body for quick installation
  • Built in cold shrink stress control for reliable high voltage cable service
  • Compact design for limited working access in joint bays or cable trays


3M Cold Shrink single core polymeric cable joints are suitable for both 6.6kV and 11kV XLPE and EPR insulated cables with copper tape screen (CTS) or copper wire screen (CWS) - this includes BS6622 (XLPE insulated, AWA aluminium wire armoured), BS7835 (XLPE insulated, AWA aluminium wire armoured, LSF low smoke zero halogen) BS6883 (Marine & Shipwiring) and BS7870 Triplex high voltage cables.

T&D have been Approved 3M Distributors since 1985 with the largest UK stocks of HV Cold Shrink joints and terminations (6.6kV, 11kV, 33kV) for the construction, oil, gas, petrochemicals, rail, renewable energy and utilities.


QS1000 / 2000 / 3M Cold Shrink Joint Body:

Adopted by dozens of power utilities across the world as their preferred cable jointing solution, the QS1000/2000 is 3M's premium line and offers a built in semi-conductive electrode - saving the need to use tape delivering even more consitency of installation. Covering almost any high voltage cable configuration and size, this range covers voltage classes up to 6.6-66kV and has been widely tested to VDE0278, HD629 and BS7888.

3M Cold Shrink Cable Joints - 11kV Single Core Polymeric





Adobe 3M Cold Shrink High Voltage Cable Joints - Brochure

Adobe 3M Cold Shrink Terminations & Cable Joints - 3M Selection Guide (HV)

Adobe 11kV Joint, XLPE EPR CTS Single Core 70-150sqmm - 3M Cold Shrink 92AG612-1

Adobe 11kV Joint, XLPE EPR CTS Single Core 185-240sqmm - 3M Cold Shrink 92AG622-1

Adobe 11kV Joint, XLPE EPR CTS Single Core 300-400sqmm - 3M Cold Shrink 92AG632-1

Adobe 11kV Joint, XLPE EPR CWS Single Core 70-150sqmm - 3M Cold Shrink 92AG611-1

Adobe 11kV Joint, XLPE EPR CWS Single Core 185-240sqmm - 3M Cold Shrink 92AG621-1

Adobe 11kV Joint, XLPE EPR CWS Single Core 300-400sqmm - 3M Cold Shrink 92AG631-1

Adobe 3M Cold Shrink QS1000 11kV Cable Joints - Specification

Adobe BS6622 BS7835 11kV XLPE Single Core Power Cable - Data

Adobe BS7870 11kV Triplex Power Cable - Data

Adobe 3M - LV-HV Joints, Terminations & Electrical Products Catalogue
