Heat Shrink Cable Joints to suit Multi-Core XLPE, EPR, PVC Cables 600/1000v - 3.3kV

Heat Shrink Cable Joints & Cable Terminations​

Low Voltage Heat Shrink Cable Joints

Heat Shrink Cable Joints - XLPE, PVC, EPR Insulated Cables

600/1000v - 3.3kV

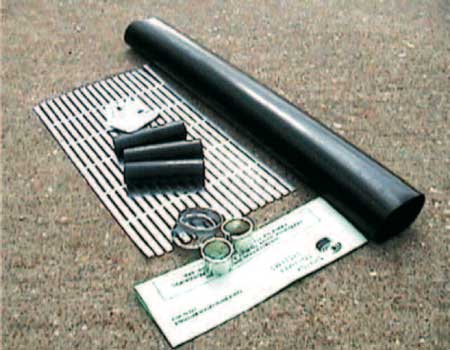

Heat shrink cable joints to suit PVC, EPR (BS6883) and XLPE (BS5467) multi-core cables up to 3.3kV. The heat shrink cable joint comprises of adhesive lined connector insulation tubes, heavy duty steel wire armour earth cage, armour support rings and clamps and an outer thick wall adhesive lined heat shrink tube. Heat shrink tubings provide high electrical insulation to the cable joint whilst the adhesive lining creates a waterproof seal between the cable joint and cable sheath preventing moisture ingress.

Heat Shrink Cable Joints - PVC, EPR, XLPE 3.3kV

SPS Heat Shrink Cable Joints & Cable Terminations - Quality Performance Testing : Shrink Polymer Systems heat shrink cable joints and cable termination kits are tested to BS7888 which incorporates Cenelec Standards HD 628 S1 and 629.1 S2 : 2006, DIN VDE0279 and IEC60502.

Heat shrink joints are also available to suit unarmoured cables (including 624Y twin and earth, RV-K flexible power cable, waveform aluminium cables) and paper insulated lead sheathed cables (PILC). LSF zero halogen heat shrink cable joints for BS6724 cables are also available.

DNV accepted heat shrink ships cable joints are available for power, control, instrumentation, signal and communications cables.

Heat Shrink Cable Joints - Benefits

  • No resin to mix or curing delays - no hazardous class jointing resins
  • Immediate energisation and backfill capability of heat shrink cable joint
  • Suitable for ducting, vertical and overhead cable jointing
  • Light, compact cable joints for space and weight savings on cable tray
  • Suitable for LV jointing of underground cables
SPS Heat Shrink Joints To Suit XPLE/SWA/PVC
SPS Part Number Cable Range Voltage
SPS SPA 1.5-2.5-* 1.5-2.5sqmm 600/1000V
SPS SPA 4-6-* 4-6sqmm 600/1000V
SPS SPA 10-16-* 10-16sqmm 600/1000V
SPS SPA 25-50-* 25-50sqmm 0.6/3.3kV
SPS SPA 70-95-* 70-95sqmm 0.6/3.3kV
SPS SPA 120-185-* 120-185sqmm 0.6/3.3kV
SPS SPA 240-300-* 240-300sqmm 0.6/3.3kV

*To denote number of cores, add number to end of reference. Example: 12 core 2.5sqmm = SPA 1.5-2.5-12



Heat shrink submersible cable joints are available for jointing pump cables on both onshore and offshore.Heat Shrink Cable Joints - Low Voltage

Heat shrink cable joints displace less space and accrue less weight to low voltage cable installations compared to resin cable joints - the slim-profile design of heat shrink cable joints are ideal for pulling cables into underground cable ducts. Heat shrink cable joints are specified where multiple cables are installed onto cable tray or ladder and space is at a premium - the finished diameter of the heat shrink cable joint adds limited incremental size to the actual overall diameter of the cable sheath, approximately 4-5mm.
