Ripley WS 16

High Voltage Pencilling Tool

Ripley WS 16 high voltage pencilling tool is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley WS 16 tool is for use with transmission and distribution cables and comes with a guarded cutting blade for safety assurance.

The high voltage tool's pencilling operation takes less than five minutes and has fast and smooth tapers.

In addition, the Ripley WS 16 can expose conductor strand and shielding if required.

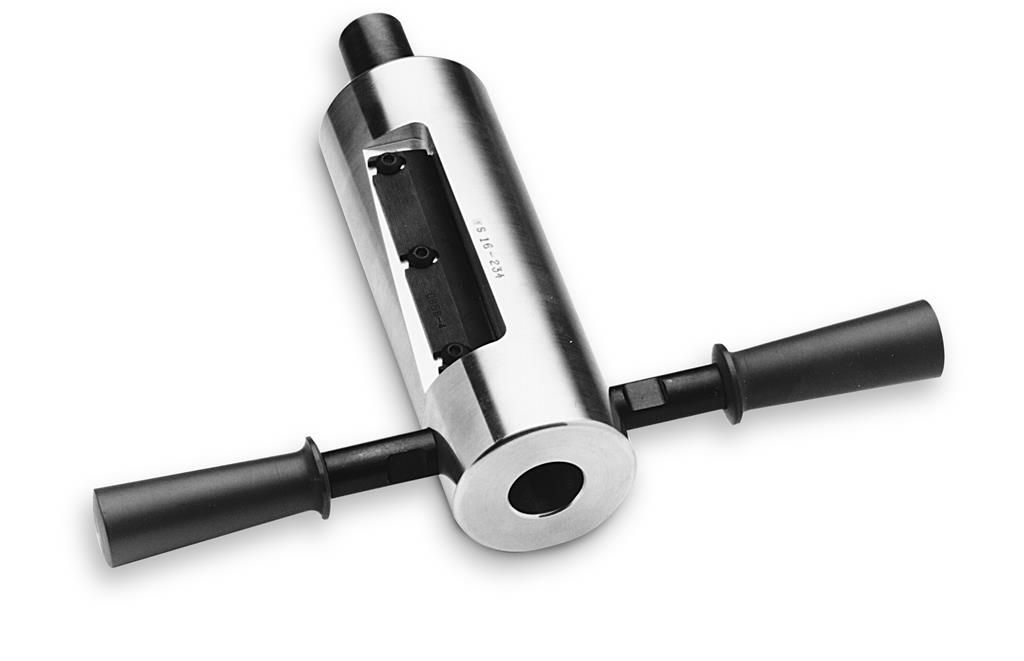

Pictured: Ripley Utility Tool WS 16 High Voltage Pencilling Tool

Ripley Utility Tool WS 16 High Voltage Pencilling Tool

• For use on 35 to 69 KV cables, 1/0 to 1000MCM
• Insulation on cable end must be stripped prior to pencilling. Use Model WS 50, WS 57, WS 57A or WS 13B end strippers.
• Semi-con shield should also be removed prior to pencilling with WS 9A/9C, WS 40, WS 51, WS 51A or WS 57A
• Made in the U.S.A
