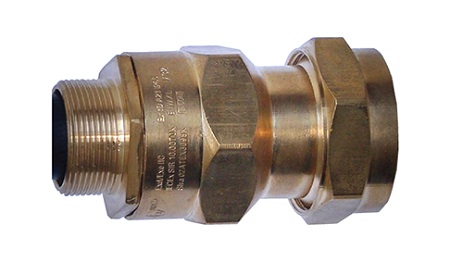

Prysmian 474NP-03 Flameproof (ATEX) Cable Gland - Bicon E1W-XL 20SS

Prysmian Bicon Flameproof Cable Glands

  Prysmian 474NP E1WXL Flameproof Cable Glands

Bicon E1W-XL 20SS Flameproof (ATEX) Cable Gland

ATEX Cable Glands

Prysmian 474NP- 03



Prysmian 474NP- 03 Flameproof ATEX Cable GlandBicon

  • Cable gland size: E1WXL 20SS
  • Suits: 8.0-13.2mm cable diameters
  • Min under armour dia: 3.8m
  • Gland thread length: 15.5mm
  • Entry thread: 0.5mm

Bicon is a Prysmian brand.

Prysmian 474NP- 03 flameproof, ATEX cable gland is certified for use in Zone 1, Zone 2 hazardous areas with circular, braid wire armour cables with extruded polymeric bedding and oversheath.

Prysmian 474NP- 03 achieves IP67 seal onto cable and to enclosure with suitable sealing washer or thread sealant.

Prysmian Cable Glands Exd Exe - Hazardous Area Cable Glands

Prysmian 474NP- 03 Technical Information

  • ATEX Certification: Certified ΙΙ 2GD, Ex e ΙΙ & Ex d ΙΙC under ATEX directive 94/9/EC
  • ATEX Compliance Standards: EN 60079-0, EN 60079-1, EN 60079-7, EN 61241-0, EN 61241-1
  • ATEX Certificate Number: Sira 02ATEX3093X

ATEX Cable Glands
  • IEC Ex Compliance Standards: IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-0, IEC 61241-1
  • IEC Ex Certificate Number: IECEx SIR 10.0070X

IEC Ex Glands
  • Operational Temperature Range: -60°C to +90°C

Adobe Prysmian E1WXL20ss Exd Exe Cable Gland, Zone 1 & Zone 2 Hazardous Area Glands - 8.0-13.2mm
