CMP Triton CDS Type T3CDS Cable Glands are Triple Certified Flameproof (Type 'd'), Increased Safety (Type 'e') and Restricted Breathing (Type ‘nR’) indoor and outdoor cable glands for use in Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas.

CMP Triton cable glands are compatible with all types of armoured cable providing a flameproof seal on the cable inner bedding and an environmental seal on the cable outer sheath with IP68 rating.

The CMP Triton CDS cable gland is suitable for use with all forms of equipment protection permitted in Zone 1, Zone 2 , Zone 21 & Zone 22.

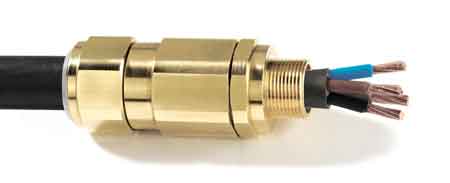

Pictured: CMP Triton T3CDS ATEX Cable Gland

CMP Triton T3CDS Cable Glands

CMP Triton T3CDS Flameproof & Deluge Proof Cable Glands - Specification

CMP Triton cable glands utilise a unique Compensating Displacement Seal (CDS) system which provides full compatibility with Restricted Breathing equipment that rely upon flammable gases being excluded from the enclosure.

The CMP Triton cable gland provides mechanical cable retention and electrical continuity via armour wire termination. A reversible armour cone and CMP AnyWay universal clamping ring arrangement allows the cable to be easily disconnected from the equipment for maintenance and change out etc., and re-connected with ease.

This feature also facilitates remote make off procedures when the cable termination is to be conducted in confined spaces or in areas of restricted access. Separate tightening actions for the inner compensating displacement seal (CDS) system and the armour termination affords maximum control over the pressure applied to the cable inner bedding.

The CMP Triton CDS Cable Gland is suitable for use with all forms of equipment protection permitted in Zone 1, Zone 2 , Zone 21 & Zone 22 provided always that the prevailing code of practice for selection, installation and maintenance is observed, e.g. IEC 60079-14.

CMP Triton T3CDS Flameproof & Deluge Proof Cable Glands

  • Cable Gland Type: CMP Triton T3CDS
  • Cable Gland Material: Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel
  • Cable Type: Single Wire Armour (SWA), Aluminium Wire Armour (AWA), Pliable Wire Armour (PWA), Steel Tape Armour (STA), Aluminium Strip Armour (ASA), Screened Flexible Wire Braid(e.g CY/SY), Wire Braid Armour
  • Ingress Protection: IP66, IP67, IP68
  • ATEX Certificate: SIRA13ATEX1073X, SIRA13ATEX4079X
  • IEC Ex: Certificate: IECEx SIR 13.0028X
ATEX Code Of Protection: Ex II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da, Ex II 3G Ex nR IIC Gc, Ex I M2, Ex d I Mb, Ex e I Mb ATEX
IEC Ex Code Of Protection: Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb IEC Ex

Pictured: CMP Triton T3CDS Cable Glands Installation. Terminate the cable by tightening the body (2) onto the entry component (1) using a spanner on each part. Tighten the body until the body and entry components are metal to metal and cannot be tightened further

CMP Triton T3CDS Flameproof & Deluge Proof Cable Glands
