 Nexans Cable Terminations

Outdoor Single Core

XLPE 6.6kV-11kV-33kV Cables

Nexans SREF







Nexans heat shrink cable termination kits (SREF)  are suitable for terminating high voltage single core power cables - Nexans terminations are suitable for outdoor applications, such as pole mounted terminations and over head line terminations up to 33kV.

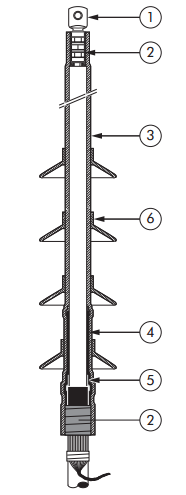

Nexans Cable Termination Kits - Heat Shrink Termination Kit List

Suits 6.6kV 11kV 12kV 15kV 17kV 24kV 33kV Cables

Single Core

• Cable lugs (compression crimp or mechanical shearbolt)
• Water sealing mastic strips
• Anti-track (red) heat shrink tubes for high voltage cable core insulation
• Anti-track heat shrink rain sheds (outdoor cable terminations)
• Stress control heat shrink tubing
• Stress control mastic

Nexans heat shrink cable termination kits for outdoor single core polymeric (XLPE or EPR) insulated power cables are suitable for the following high voltage cable classes : 6/10 (12kV), 6.35/11 (12kV), 8.7/15 (17.5kV), 12/20 (24kV), 12.7/22 (24kV), 18/30 (36kV) and 19/33 (36kV).

Nexans high voltage heat shrink cable terminations meet the requirements of CENELEC HD 629.1 and IEC 60502-4.



Nexans Heat Shrink Cable Terminations 11kV-33kV

Single Core Cables

• SREF - 11kV 35-70sqmm, 95-240sqmm, 240-500sqmm, 400-630sqmm
• SREF - 33kV 70-95sqmm, 120-240sqmm, 240-500sqmm



Nexans Cable Termination Type	Voltage Class (Um)	11kV-12kV	17kV-24kV	33kV-36kV
Nexans SREF Heat Shrink  Outdoor Single Core	Cable Conductor sqmm	35-70sqmm 95-240sqmm 240-500sqmm 400-630sqmm	35-70sqmm 95-185sqmm 240-400sqmm 400-630sqmm	70-95sqmm 120-240sqmm 240-500sqmm

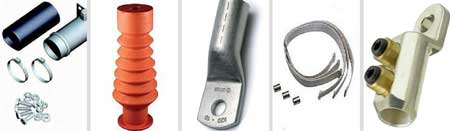

Pictured : Nexans Terminations - T&D supply complete range of high voltage cable termination accessories including cable glands, bushing boots, cable lugs (crimp or mechanical) and screen earth kits.



Nexans Heat Shrink Cable Terminations 11kV-33kV Catalogue
