Indoor Single Core

XLPE 6.6kV-11kV-33kV Cables

Nexans SREI

11kV 33kV





Nexans heat shrink cable termination kits (SREI)  are suitable for terminating high voltage single core power cables - Nexans terminations are suitable for indoor applications, such as air insulated high voltage cable end termination boxes.

Nexans Cable Termination Kits - Heat Shrink Termination Kit List

Suits 6.6kV 11kV 12kV 15kV 17kV 24kV 33kV Cables

Single Core

  • Cable lugs (compression crimp or mechanical shearbolt)
  • Water sealing mastic strips
  • Anti-track (red) heat shrink tubes for high voltage cable core insulation
  • Anti-track heat shrink rain sheds (outdoor cable terminations)
  • Stress control heat shrink tubing
  • Stress control mastic

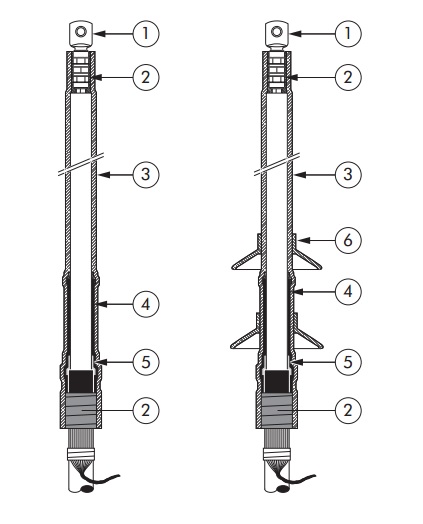

Pictured: Nexans Heat Shrink Terminations Indoor Single Core XLPE 6.6kV-11kV-33kV - Nexans SREI

Nexans Heat Shrink Terminations Indoor Single Core XLPE 6.6kV-11kV-33kV - Nexans SREI


Nexans heat shrink cable termination kits for indoor single core polymeric (XLPE or EPR) insulated power cables are suitable for the following high voltage cable classes : 6/10 (12kV), 6.35/11 (12kV), 8.7/15 (17.5kV), 12/20 (24kV), 12.7/22 (24kV), 18/30 (36kV) and 19/33 (36kV).

Nexans high voltage heat shrink cable terminations meet the requirements of CENELEC HD 629.1 and IEC 60502-4.

Nexans Heat Shrink Cable Terminations 11kV-33kV - Single Core Cables

SREI - 11kV 35-70sqmm, 95-240sqmm, 240-500sqmm, 400-630sqmm
SREI - 33kV 70-95sqmm, 120-240sqmm, 240-500sqmm

Nexans Cable Termination Type Voltage Class (Um) 12kV (17kV&) 24kV 36kV

Nexans SRDI

Heat Shrink

Indoor

Single Core

Cable Cross Section sqmm

35-70sqmm

95-240sqmm

240-500sqmm

400-630sqmm

35-70sqmm

95-185sqmm

240-400sqmm

400-630sqmm

70-95sqmm

120-240sqmm

240-500sqmm
