Nexans Euromold 180AR High Voltage Oil Insulated Bushing

Nexans Euromold Connectors

200 Series Interface A

High Voltage Oil Insulated Bushing



Euromold 180AR are epoxy bushings for use in MV-HV switchgear, capacitors and transformers insulated with oil and used to connect medium/high voltage cables onto in Interface A electrical equipment using Euromold connectors in the following voltage classes:

• 6/10 (12kV)
• 6.35/11 (12kV)
• 8.7/15 (17.5kV)
• 12/20 (24kV)
• 12.7/22 (24kV)

Nexans Euromold 180AR High Voltage Oil Insulated Bushing

• Voltage 12kV 24kV
• Current Ir 250 Amps

Application : Nexans 180AR high voltage oil insulated bushing designed for use in equipment insulated with air, typically for dry type transformers, motors, switchgear, capacitors...

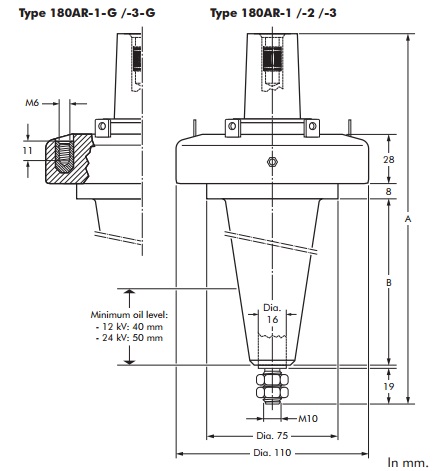

Nexans Euromold 180AR High Voltage Oil Insulated Bushing - Specification Design

Nexans Euromold 180AR High Voltage Oil Insulated Bushing

Equipment bushing type	Voltage Um (kV)	Current Ir (A)	Dimensions (mm)
			A	B
Nexans Euromold 180AR-1	12	250	222	106
Nexans Euromold K180AR-1	24	250	222	106
Nexans Euromold 180AR-2	12	250	284	168
Nexans Euromold K180AR-2	24	250	284	168
Nexans Euromold 180AR-3	12	250	171	55
Nexans Euromold K180AR-3	24	250	171	55

Nexans Euromold 180AR High Voltage Oil Insulated Bushing
