Nexans Euromold 180A High Voltage Air Insulated Bushing

Nexans Euromold Connectors

200 Series Interface A

High Voltage Air Insulated Bushing



Nexans Euromold 180A are epoxy bushings for use in MV-HV switchgear, capacitors and transformers insulated with oil and used to connect medium/high voltage cables onto in Interface A electrical equipment using Euromold connectors in the following voltage classes:

• 6/10 (12kV)
• 6.35/11 (12kV)
• 8.7/15 (17.5kV)
• 12/20 (24kV)
• 12.7/22 (24kV)

Nexans Euromold 180A High Voltage Air Insulated Bushing

• Voltage 12kV 24kV
• Current Ir 250 Amps

Application : Nexans 180A high voltage air insulated bushing designed for use in equipment insulated with air, typically for dry type transformers, motors, switchgear, capacitors...

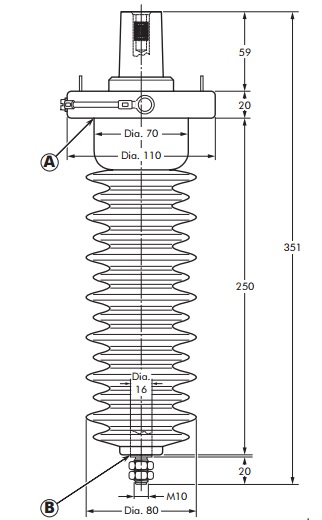

Nexans Euromold 180A High Voltage Air Insulated Bushing - Specification Design

Nexans Euromold 180A High Voltage Air Insulated Bushing

Equipment bushing type	Voltage Um (kV)	Current Ir (A)	Creepage distance A-B (mm)
Nexans Euromold 180A-24P-O	12	250	630
Nexans Euromold 180A-24P-O	24	250	630





Nexans Euromold 180A High Voltage Air Insulated Bushing
