Nexans Euromold 152SR Screened Separable Straight Connector 12-24kV

Nexans Euromold

Nexans Euromold Connectors

200 Series Interface A

Straight Connectors



Nexans Euromold 152SR is a screened separable straight connector specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)

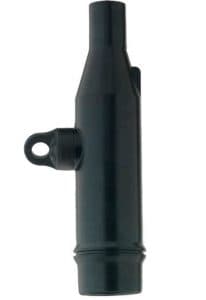

Euromold 152SR

 Nexans Euromold 152SR Screened Separable Straight Connectors

  • Voltage 12kV 24kV
  • Current (lr) 250 Amps

Application : Nexans 152SR Separable straight connector designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors...). Also connect

Nexans Euromold 152SR Screened Separable Straight Connector 12-24kV - Specification Design

Nexans Euromold 152SR Screened Separable Straight Connector 12-24kV

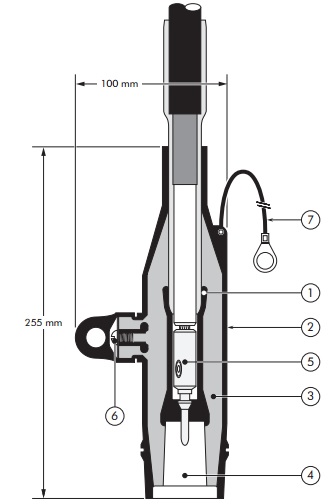

Euromold separable connector comprising:

1. Conductive EPDM insert.

2. Conductive EPDM jacket

3. Insulating EPDM layer moulded between the insert and the jacket

4. Type A - 250 A interface as described by CENELEC EN 50180 and 50181

5. Conductor connector

6. Voltage test point

7. Earthing lead (-/G version only).

Nexans Euromold 152SR Screened Separable Straight Connector 12-24kV

Separable plug type Voltage Um (kV)  Current Ir (A) Conductor sizes (sqmm)
Min  Max
Nexans Euromold 152SR/G  12 250 16 70
Nexans Euromold 152SR 12 250 70 95
Nexans Euromold K152SR/G 24 250 16 25
Nexans Euromold K152SR 24 250 25 95



Euromold 152SR Part Number Dia. over core insulation (mm)
min max
152SR/G-11-X 12.6 16.1
152SR/G-13-X 14.6 18.7
152SR-FB-X+11TL 17.5 20.2
152SR-FG-X+11TL 18.4 21.2
152SR-GA-X+11TL 19.7 22.5
152SR-GAB-X+11TL 21.0 23.8
152SR-GH-X+11TL 23.6 26.4



Conductor sizes (sqmm) Aluminium Cable Copper Cable
DIN Hexagonal Crimp Deep Indent Crimp DIN Hexagonal Crimp
16sqmm - - 16(K)M-11-2
25sqmm 25(K)M-12-2 25KM-12-1 25(K)M-11-2
35sqmm 35(K)M-12-2 35KM-12-1 35(K)M-11-2
50sqmm 50(K)M-12-2 50(K)M-12-1* 50(K)M-11-2
70sqmm 70(K)M-12-2 70(K)M-12-1* 70(K)M-11-2
95sqmm 95(K)M-12-2 * 95(K)M-12-1* 95(K)M-11-2*
