Earth Rods - Stainless Steel

Earth Rods - Stainless SteelEarth Rods - Stainless Steel

Material: Stainless Steel to BS EN 10088

AN Wallis Earthing & Lightning Protection Distributors



Stainless steel earth rods are designed for use where problems may be caused by galvanic corrosion due to dissimilar metals being buried in close proximity - they are produced from stainless steel rod and are internally threaded for jointing.

Stainless steel earth rods are highly resistant to corrosion and a comprehensive range of earth rod driving heads, spikes, dowels and couplers are available.

Earth rods are manufactured from stainless steel according to BS EN 10088 standard with excellent corrosion resistance for harsh environmental conditions. For installations with high resistivity soil and ground conditions requiring earth rods with increased conductivity a full range of copper earth rods are available.

Solid copper earth rods are designed for use where extremely high corrosion resistance and exceptionally long service life is required.

Commonly used where soil conditions are more aggressive, i.e. areas with high levels of salt content. Soil conditions including temperature and type, moisture content and retention all determine the overall resistivity of the earth rod and system.

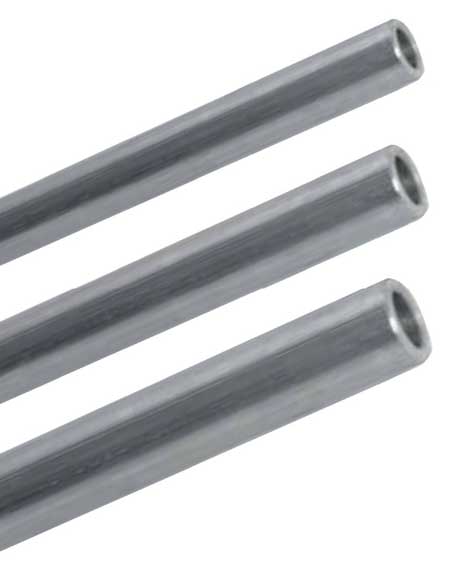

Pictured: AN Wallis Stainless Steel Earth Rods (Stainless steel manufactured to BS EN 10088 standards)

AN Wallis Stainless Steel Rods

Stainless steel earth rods are highly resistant to corrosion and a comprehensive range of driving heads, spikes, dowels and couplers are available.

AN Stainless Steel Earth Rods - Product Range
Part Number Shank Length Thread Size Length 1 Unit Weight Pack Quantity
ERZ 112 16mm 1200mm M10 20mm 1.87kg 5
ERZ 115 16mm 1500mm M10 20mm 2.35kg 5
ERZ 118 16mm 1800mm M10 20mm 2.83kg 5
ERZ 124 16mm 2400mm M10 20mm 3.79kg 5
ERZ 130 16mm 3000mm M10 20mm 4.75kg 5
ERZ 212 20mm 1200mm M10 20mm 2.95kg 5
ERZ 215 20mm 1500mm M10 20mm 3.71kg 5
ERZ 218 20mm 1800mm M10 20mm 4.46kg 5
ERZ 224 20mm 2400mm M10 20mm 5.96kg 5
ERZ 230 20mm 3000mm M10 20mm 7.46kg 5
ERZ 312 25mm 1200mm M12 25mm 4.64kg 1
ERZ 315 25mm 1500mm M12 25mm 5.81kg 1
ERZ 318 25mm 1800mm M12 25mm 6.99kg 1
ERZ 324 25mm 2400mm M12 25mm 9.34kg 1
ERZ 330 25mm 3000mm M12 25mm 11.69kg 1
