Power Shunts 1100amps Current Rating - 500sqmm Cross Section

Power shunts are large cross-sectional area copper braided connectors, customised and designed to meet the increasing demands of power distribution applications including power stations, generators, switchgear and power transmission.

Power shunts are often designed with multi-layers of flat or round copper braids to achieve sizes of up to 1000sqmm. In this instance the cross section id 500sqmm and is able to carry currents of 500amps.

Pictured: 1100amp Power Shunts - Braided Copper Connectors

• How To Order 1100amp Power Shunts

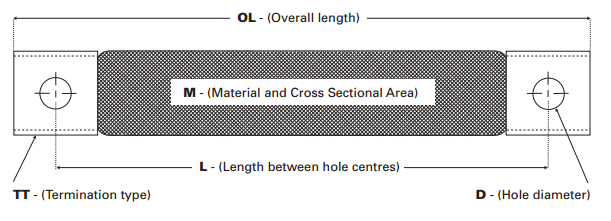

To enable the custom design and specification of Power Shunts to meet specific applications we require the following information:

• OL - Overall Shunt Length
• L - Length Between Hole Centres
• D - Hole Diameter
• M - Shunt Material & Cross Sectional Area (CSA)
• TT - Shunt Termination Type

Power Shunts - Braids Flexible Connectors (Custom Design Enquiry Form)
