Hard Drawn Copper Bars - BS1433/BS2874 C101

AN Wallis Earthing & Lightning ProtectionBare Hard Drawn Copper Bar Conductors

Material: Copper manufactured to BS EN 12163 (BS2874)

AN Wallis Earthing & Lightning Protection Distributors

T&D distribute the full range of AN Wallis Earth Tapes.

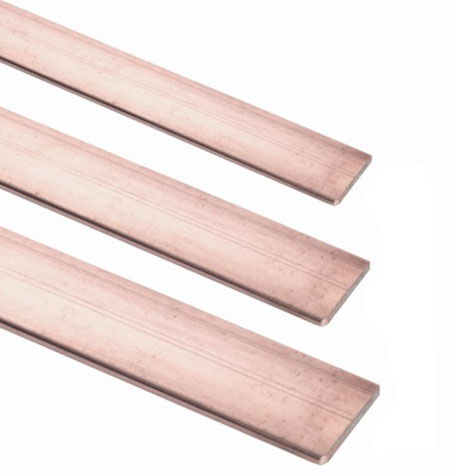

Pictured : AN Wallis Bare Hard Drawn Copper Bar Conductors

Bare Hard Drawn Copper Bar Conductors

AN Wallis Bare Hard Drawn Copper Bar Conductors - Product Range
Part Number Dimensions Cross Sectional Area / Thickness Weight Per Metre Standard Length
HD 2003 20mm x 3mm 60mm² 0.53kg 4m
HD 2503 25mm x 3mm 75mm² 0.67kg 4m
HD 2504 25mm x 4mm 100mm² 0.89kg 4m
HD 2506 25mm x 6mm 150mm² 1.33kg 4m
HD 3806 38mm x 6mm 228mm² 2.03kg 4m
HD 5006 50mm x 6mm 300mm² 2.68kg 4m
HD 7506 75mm x 6mm 450mm² 4.02kg 4m
HD 10005 100mm x 5mm 500mm² 4.48kg 4m
HD 10006 100mm x 6mm 600mm² 5.38kg 4m

Adobe Bare Hard Drawn Copper Bars
