Copper Lattice Mats

Earthing & Lighting Protection

Copper Lattice Mats, Solid Copper

Material: Copper manufactured to BS EN 13601

AN Wallis Earthing & Lightning Protection Distributors

Copper earth mats offer a more economical cost option to installing solid earth copper plates - they are often used for potential grading and are a preferred option on installations such as telecommunications towers where touch and step potential could cause problems.

Earth mats manufactured from high conductivity copper tape also reduce the danger of exposure to high step and touch voltages to substation and authorised personnel working on high voltage switching providing reliable earthing in high fault current and step potential avoidance applications, such as high voltage substations and switchrooms.

Copper earth mats are manufactured to BS EN 12163 (formerly BS 2874) – solid copper earth plates are also available.

T&D offer a full range of Wallis earthing & lightning protection products.

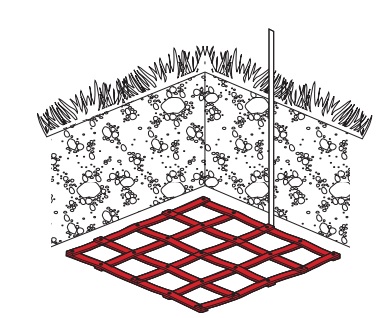

Pictured: Wallis EML 603 Copper Lattice Mat

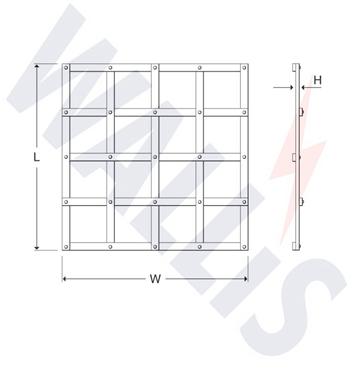

Copper Earth Mat Dimensions

Wallis Copper Lattice Mats - Product Range

Part Number	Dimensions	Surface Area	Grid	Unit Weight	Pack Quantity
EML 603	600mm x 600mm x 3mm	0.31m²	5 Bar	4kg	1
EML 903	900mm x 900mm x 3mm	0.55m²	6 Bar	7.2kg	1
EML 903 SPC		0.46m²	5 Bar	6.1kg	1

AN Wallis Copper Lattice Earth Mats
