Roxtec Cable Transits Frames - Cable & Pipe Seals

Roxtec Cable Transits - Seal Cables Against Water, Fire & Gas







• Roxtec Transits, Cable & Pipe Seals - Feature & Benefits

Roxtec cable transits helps reduce risks and secure operational reliability while providing excellent sealing features and are easy to use due to their unique flexibility.

Roxtec ensures cost-effective sealing solutions for any opening, wherever cables or pipes are to pass through and whatever size they are.




Protecting People and Investments
Roxtec cable transit seals protect against fire, gas, water, explosions and dust. The sealing system keeps rodents and vermin out and prevents problems from pull-out, vibrations and noise. Cable transits also provides flexible solutions for explosion protected applications according to ATEX/IECEx as well as a wide range of EMC versions for applications such as EMI shielding, potential equalization and lightning protection.



Allows Pre-terminated Cables
The Roxtec cable transit system simplifies design, planning and installation and minimizes the need for materials and logistics - cable and pipe seals make it possible to route multiple pre-terminated cables through very few openings. Furthermore, Roxtec seals provide spare capacity for future needs. Whenever you want, you can open up the seal, adapt the sealing modules, add new cables or pipes and then re-seal the transit.




Standardize with Roxtec Seals
The Roxtec system is the reference standard in many industries - cable transits are specified in a wide range of applications in the marine, oil, gas, construction, power, OEM and telecom sectors. Sealing applications include cable entries and pipe penetrations in walls, decks and bulkheads as well as in cabinets and electrical enclosures.

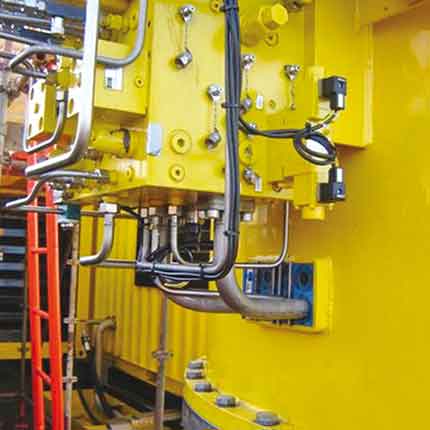

Pictured : Sealing Offshore Deck & Bulkheads Using Cable Transit S Frames.

Roxtec has developed both round and rectangular sealing solutions for the sealing of cables through decks and bulkheads. The seals ensure certified protection against water, gas and fire (A, H and J class).





Easy Installation & Maintenance
Roxtec cable transit sealing solutions allow quick and clean installations with few parts and no chemicals to mix on site. The neat organization of cables creates area efficiency, ensures easy inspections and reduces the risk of human errors. This is why so many users decide to standardize with one outstanding cable and pipe transit system.


All Cables & Pipes Sealed
The Roxtec cable and pipe transit sealing system exists in different versions for varying needs. You can choose from round or rectangular transit frames in steel or light-weight materials, made for single or multiple cables or pipes. Roxtec frames are available with adaptable sealing modules and tighten with the Roxtec wedge or an integrated compression unit.



Multidiameter™
The Roxtec innovation for adaptability is called Multidiameter™. This solution is based on Roxylon™ rubber modules or bodies with removable layers ensuring a perfect fit to cables and pipes of different sizes. You can seal most cables with just six basic sizes of sealing modules. The reliability of the sealing components are certified and approved by all major classification societies.

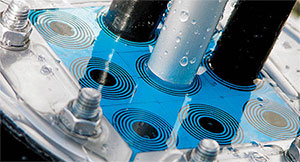

Pictured : Roxtec Multidiameter Cable & Pipe Seals




Marine : Certified Safety at Sea

Owners and builders of ships, carriers and yachts rely on Roxtec cable and pipe transits. for quick and clean installations. A unique ability for cost-efficient cable and pipe seal system upgrades.

Pictured : Cargo Ship - Gas Tight Cable Sealing. Roxtec S type cable transit frames provide cable and pipe sealing solutions that do not only act as fire stops and water barriers. The cable seals include features such as gas-tightness making them ideal for use in areas where there is a need for maintaining pressure.





Efficient Sealing Solution
Roxtec cable transits are approved for use in A class rated sections - they protect against fire, water, pressure and vibration while reducing noise and material fatigue. In shipyards, the transits are appreciated for the safe installation process and the adaptability to different cables, metal and plastic pipes. The Roxylon™ rubber in the seals has also proven to be an efficient barrier against thermal bridges.



Transmission & Distribution : Efficient and Powerful Seals
Roxtec cable transit seals provide safety and long-term reliability for transmission grid operators worldwide. If you want to make sure that your power is supplied without interruption, then go for Roxtec kit solutions when developing your high voltage power grid.

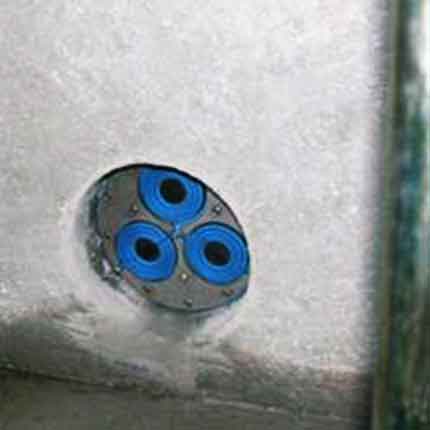

Pictured : Pad Mounted Shelters. Roxtec round cable seals are flexible and specified for pre-fabricated shelters placed on concrete foundations in substations. Roxtec H type cable transit seals protect against fire, gas, water, dust and rodents in order to ensure safety, efficiency and operational reliability.




Priceless Insurance
Roxtec transit seals cover your cable and pipe protection requirements - seals are used to prevent water and flooding as well as rats from damaging electrical equipment in low and high voltage substations. Cables are neatly organized, which simplifies inspection and cable tracking. Roxtec kit solutions will relieve you from the constant work of keeping away risks of stoppage, credibility problems and heavy warranty costs.



OEM : Recommended For Perfection
Roxtec transit sealing solutions for cables and pipes cover the varying needs for safety and cost-efficiency in the OEM industry. With the Roxtec range of seals, you can protect people and equipment and ensure operational reliability.



Better Space Management
Roxtec makes installation quick and safe - electrical engineers can route multiple pre-terminated cables of different sizes through very few openings. In the modular-based seal, cables are neatly organized. A small but proper space between each cable creates area efficiency, which simplifies inspection and maintenance.



Build Today, Upgrade Tomorrow
Roxtec frames can be cast or welded into various constructions, inserted in core-drilled holes or bolted onto the surface. With built-in spare capacity for additional cable routing, Roxtec can design today with future needs in mind.
