Cembre RH50

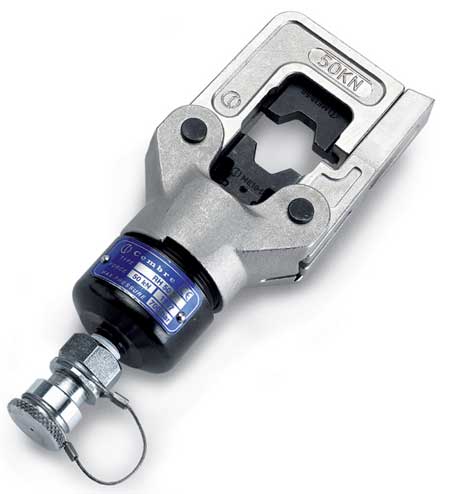

Cembre Hydraulic Crimp Head (240sqmm) - RH50 Presshead



Cembre hydraulic crimp head RH50 complete with quick automatic coupler for connection to a hydraulicpump with a working pressure of 700bar max.

Cembre crimp head RH50 is ideal for high volume and bench crimping due to ligheweight (1.6kg) and compression speed.

Cembre RH50 Crimping Presshead - Length 196mm, Width 75mm, 50kN Crimp Force.

Cembre RH50 Hydraulic Crimp Head (240sqmm) - Presshead

Cembre RH50 Presshead  - Crimping Head Capability :

  • LV Lugs & Splices up to 240sqmm
  • Insulated Terminals up to 70sqmm
  • End Sleeves up to 50sqmm
  • C Sleeves, C Tap Connectors up to 70sqmm



Cembre RH50 Hydraulic Crimp Head (Presshead) Features

  • Crimping Force 50kN
  • Maximum Operating Pressure 700 Bar
  • Cembre RH50 Length 196mm
  • Cembre RH50 Width 75mm
  • Cembre RH50 Weight 1.6kg



Cembre RH50 Hydraulic Presshead - User Instructions

Cembre RH50 presshead tool is suitable for crimping electrical cable connectors, lugs and splices for conductors up to 240sqmm (500 MCM).

  • Cembre RH50 presshead is equipped wth "self-lock" quick male coupler
  • Presshead can be connected to Cembre hydraulic, pneumatic, electrical pump
  • Select the appropriate crimp die set for the electrical connector (lug or splice)
  • Open the presshead latch and release the upper die holder
  • Insert one die into the upper die holder and one die into lower die holder
  • Close the presshead crimp tool latch
  • Insert the conductor into the connector
  • Locate the connector between the dies at the desired crimping position
  • Operate the pump to advance the main ram
  • Continue to operate the pump the ram will advance until the crimp dies meet
  • Continue pumping until maximum pressure valve is activated
  • Fully release the oil pressure from the pump to retract the ram
  • The presshead will now release the crimped connector (lug or splice)

Crimping Tool Tips & Notes : Oil pressure in the Cembre RH50 presshead must be always completely released before disconnecting the head from the nose.

11kV 33kV


Crimping Tool Maintenance : Dust, sand and dirt threaten the safe and reliable operation of all hydraulic presshead tools - after use the Cembre RH50 should be cleaned with a clean cloth taking care to remove any residual especially close to pivots and movable parts.

Cembre crimper tools are preferred by MV-HV Cable Jointers to provide electrical crimp connections and splices, call us to discuss your cable installation and jointing tool requirements.
