Cembre HT45-E Hydraulic Crimping Tool (up to 150sqmm)

Cable Crimping Tools

Cembre HT45-E

Cembre HT45-E Hydraulic Crimping Tools

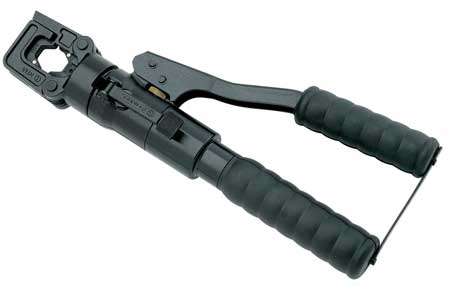

Cembre HT45-E hydraulic crimping tool is lightweight and compact for the crimping and compression of low and high voltage cable lugs, splices and connectors up to 150sqmm.

Cembre HT45-E hydraulic crimping tool features spring loaded handles allowing the die sets to beadvanced with one hand - the other hand free to position the connector prior to crimping. For ease of operation and comfort of the electrical engineer or cable jointer the Cembre HT45-E crimp tool head can be fully rotated through 180 degrees.

Cembre HT45-E hydraulic crimping tools feature built-in safety valves which by-pass the oil supply when the maximum pressure is reached.

Cembre HT45-E : Length 346mm, Width 130mm - 50kN Crimp Force.

Cembre HT45-E Hydraulic Crimping Tools - User Instructions

Cembre HT45-E tool is suitable for crimping electrical cable connectors, lugs and splices for conductors up to 150sqmm (300 MCM).

• Select the appropriate die set for the connectors (crimp lugs or splices)
• Open the latch and release the upper die holder of the crimping tool
• Insert one die into the upper die holder and one die into the lower die holder
• Close the latch
• Remove the handle holder to release the moveable handle
• Insert the conductor into the connector (crimp lug or splice)
• Locate the connector between the crimping dies at the desired crimp position
• Operate the crimp tool moveable handle to build up pressure and close dies
• Operate the moveable handle, the ram will advance until crimp dies meet
• Press the pressure release lever for rapid retraction of the the ram
• The dies will re-open to release the crimped connector from the crimp tool
• After crimping completion press the release lever to release oil pressure

Crimping Tool Tips & Notes : Ensure that the latch and upper die holder of the Cembre HT45-E are fully secured to avoid damage during crimping. The automatic opening of the moveable handle allows the operation of the hydraulic crimping tool using one hand, while locating the connector (cable lug or cable splice) into the required crimp position with the other hand.

Crimping Tool Maintenance : Dust, sand and dirt threaten the safe and reliable operation of all hydraulic crimping tools - after use the Cembre HT45-E should be cleaned with a clean cloth taking care to remove any residual especially close to pivots and movable parts.

Cembre HT45-E Hydraulic Crimping Tool - Capability :

• LV Lugs & Splices up to 150sqmm
• HV Lugs & Splices up to 70sqmm
• C Sleeve, C Tap Connectors up to 35sqmm

Cembre HT45-E Hydraulic Crimping Tool Features:

• Crimping Force 50kN
• Cembre HT45-E Length 346mm
• Cembre HT45-E Width 130mm
• Cembre HT45-E Weight 2.0kg

Cembre crimper tools are preferred by MV-HV Cable Jointers to provide electrical crimp connections and splices, call us to discuss your cable installation and jointing tool requirements.
