CATU CC-965 IEC Electronic Voltage Detector 10-30kV

CATU IEC Voltage Detector

CATU CC-965-10/30

Medium Voltage Equipment 10kV-10kV

CATU's CC-965-10/30 IEC voltage detector is part of the CATU medium voltage equipment range for indoor and outdoor use.in accordance with IEC 61243-1.

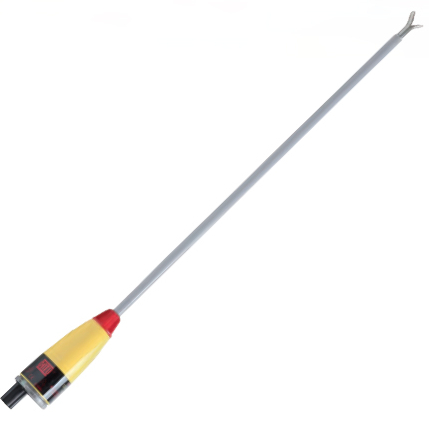

Pictured: CATU CC-965-10/30 IEC Voltage Detectors 10kV-30kV

The CATU CC-965-10/30 is the ultimate voltage detector in head capactive technology and can be universally used for 50/60Hz applications and with voltages up to 30kV.

CATU CC-965-10/30 IEC Voltage Detectors 10kV-30kV - Features & Benefits

• Temperature conditions: class N (-25 to 55ºC)
• Type S (Substation) with electrode extension (14mm diameter)
• Power Supply: 1 standard 9V battery 6LR61
• ​Network Frequencies: 50 and 60Hz
• Contact electrodes fitted by screwing and easily interchangeable
• Supplied in a carrying bag with zip (930mm x 200mm) and transpararent side pocket
• In compliance with the standard IEC 61243-1 Ed 2 (2003)
• CE marking complies with EMC immunity regulations
• Equipped with it's insulating stick - assembly by screwing

CATU CC-965-10/5=30 IEC Voltage Detectors 10kV-30kV - Technical Specification

Part Ref	Operating Voltage	Dimensions	Weight
CATU CC-965-10/30	10 to 30kV	Length - 1.55m, Diameter - 59mm	850g
CATU CC-965-5/15	5 to 15kV	Length - 1.45m, Diameter - 59mm	820g
