Cobra Conduit Rod & Duct Rod

Conduit Rod & Duct Rod

SEB International

High Tensile Strength, High Flexibility Conduit Rods



High quality glass fibre reinforced conduit rod ideal for cable pulling into ducts.

Continuous pipe and duct rodding systems (often referred to as Cobras, conduit snakes, duct rods or conduit rods) provide a compact and labour saving solution to utility contractors installing cables in ducts, threading draw ropes thorough pipes or surveying drains with CCTV cameras.

The range of conduit rod accessories include:

• Guide tips to guide through ducts
• Flexible guide tips to assist round bends
• Swivel connectors (for joining two conduit rods rods together where longer lengths are needed)

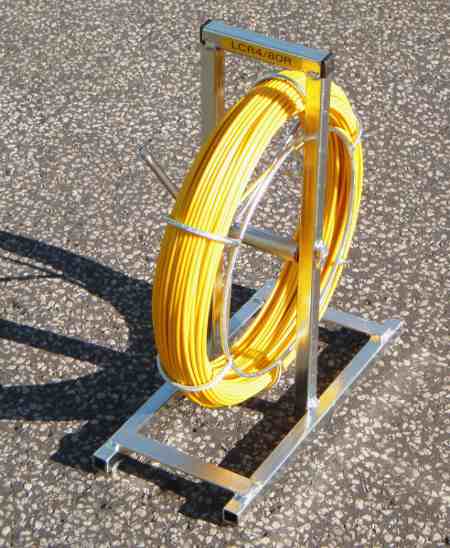

Pictured: Cobra Conduit Rod & Duct Rod

All conduit rod guide tips come with an eye for attaching draw ropes.

The high quality glass fibre reinforced helically wound epoxy rod have good adhesion properties for the outer polyethylene coating.

This construction gives excellent bending elasticity which makes it ideal for short to long installations into ducts - ideal and fast way of installing draw ropes and winch ropes into ducts, ready for cable pulling operations.

Cobra Conduit Rod & Duct Rod - Product Range

Part Number	Description	Dimensions	Weight
LCR4/40R	4mm Diameter on 480mm High Free Standing Free	4mm x 40m	5kg
LCR4/60R		4mm x 60m	6kg
LCR4/80R		4mm x 80m	7kg
LCR4/100R		4mm x 100m	8kg
LCR6/60R	6mm Diameter on 590mm High Free Standing Reel	6mm x 60m	10kg
LCR6/80R		6mm x 80m	11kg
LCR6/100R		6mm x 100m	12kg
LCR6/150R		6mm x 150m	13kg
LCR9/60R	9mm Diameter on 1040mm High Mobile Reel	9mm x 60m	26kg
LCR9/80R		9mm x 80m	28kg
LCR9/100R		9mm x 100m	30kg
LCR9/120R		9mm x 120m	32kg
LCR9/150R		9mm x 150m	35kg
LCR11/100R	11mm Diameter On 1160mm High Mobile Reel	11mm x 100m	39kg
LCR11/150R		11mm x 150m	47kg
LCR11/200R		11mm x 200m	54kg
LCR11/250R		11mm x 250m	61kg
LCR11/300R		11mm x 300m	69kg
LCR14/150R	14mm Diameter On 1290mm High Mobile Reel	14mm x 150m	65kg
LCR14/200R		14mm x 200m	77kg
LCR14/250R		14mm x 250m	87kg
LCR14/300R		14mm x 300m	99kg
LCR14/350R		14mm x 350m	111kg



Cobra Conduit Rod & Duct Rod
