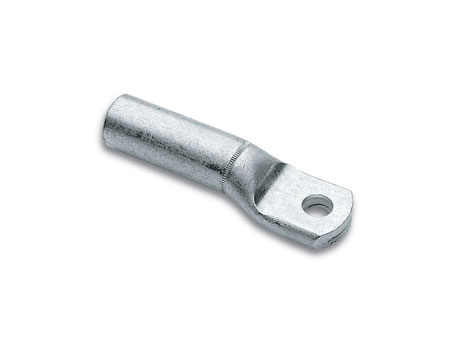

Cembre AA240 Aluminium Cable Lugs 240sqmm

Cable Aluminium Cable Lugs

Aluminium Cable Termination Lugs up to 11kV-33kV

Suit Stranded Compacted Circular Aluminium Conductors

240sqmm Conductor Size

Cembre AA240-M12  / AA240-M14



Cembre AA240 Aluminium Cable Lugs 240sqmm - designed to be crimped onto the conductor to enable low voltage cable termination via the lug. Stud hole size M12 or M14

Cembre AA240-M12 Cable Lug Installation

Cembre Die Set MK32L-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-17.5C

Cembre AA240-M14 Cable Lug Installation

Cembre Die Set MK32L-C
Cembre Crimp Tool HT131-C
Cembre Pre-Rounding Die Set UP130-17.5C

Cembre AA240-M12 Cable Lug Dimensions

Internal Diameter 19.5mm
Palm Width 44mm
Overall Length 122mm

Cembre AA240-M14 Cable Lug Dimensions

Internal Diameter 19.5mm
Palm Width 44mm
Overall Length 126mm

Cembre aluminium cable lugs (AA range) are rated up to 33kV.



Also - Cembre Cable Crimping Tools & Cembre Cable Cutting Tools
