Ripley WS 76

​Semi-Con Shaving Tool

Ripley WS76 semi-con scoring tool shaves bonded semi-con screens from high voltage power cables including 11kV and 33kV HV power cables.

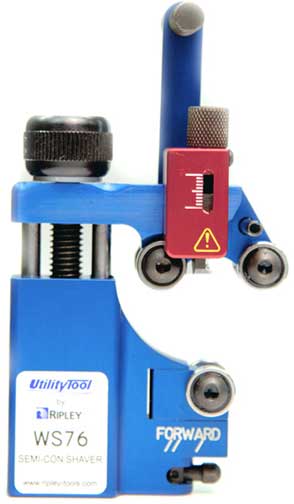

Pictured: Ripley WS 76 Semi-Con Shaving Tool

Ripley WS 76 Semi-Con Shaving Tool Specifications

• Shaves 15-35 KV cable with semi-con diameters from 18 mm to 60 mm (0.71 – 2.36 in.)
• Accurate semi-con removal within 25 mm (.984 in.) of the jacket in forward position
• Reverse feature accurately removes semi-con shield within 7 mm (spiral action)
• Precision ground blade provides a 20ž chamfer cut finish at the semi-con end
• Precision blade adjustment in 0.1 mm increments
• Thumb switch to allow easy transition from spiral shave to square cut finish without requiring an additional stop device
• Easy blade replacement without the need for additional tools
• Length - 140.3 mm (5.52 in.)
• Weight - 454 g (1 lb)
• Part No. 43580
• WS 76 with case part no.: 43560
• Replacement blade part no.: 43577
