Cembre A-4ESI 4 hole transformer cable lugs are suitable for use to 11kV and feature 4 x M8 holes on 25mm x 35mm centres. Cembre A-4ESI transformer cable lugs are made from high purity electrolytic copper tube, annealed and tin plated. 4 hole copper tube transformer cable lugs can be produced to custom specification and drilled hole requirements.

Cembre A4ESI 4 Hole Transformer Cable Lugs


11kV Cable Lugs - Cembre High Voltage HV Cable Lugs

Cembre 11kV cable lugs are suitable for terminating high voltage (HV) stranded copper conductors to BS6360 Class 2. Cembre lugs are suitable for terminating and crimping both 11kV cables indoor - crimped using Cembre hydraulic crimping tools (HT51 up to 240sqmm or HT131-C up to 400sqmm). Cembre transformer copper cable lugs are short circuit tested to BS4579 Part 3 for high voltage 11kV cable crimping termination.

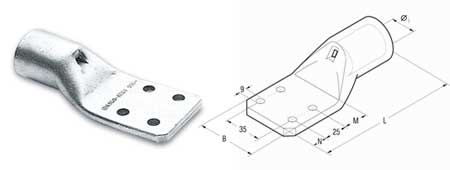

Cembre A-4ESI 4 Hole Copper Tube Lugs​ 11kV-33kV Specifications

Reference Number Conductor Size Dimensions
Øi B M N L
Cembre A37-4ESI 185sqmm 19.2mm 61mm 20mm 15mm

124mm

Cembre A48-4ESI 240sqmm 21.1mm 61mm 20mm 15mm

128mm

Cembre A60-4ESI 300sqmm 23.7mm 61mm 20mm 15mm

133mm

Cembre A80-4ESI 400sqmm 27mm 61mm 20mm 15mm

134mm

Cembre A100-4ESI 500sqmm 30.3mm 61mm 20mm 15mm

139mm

Cembre A120-4ESI 630sqmm 33.4mm 61mm 20mm 15mm

144mm

Cembre A180-4ESI 800sqmm 38mm 61mm 20mm 15mm

158mm



Compression Connectors for Connecting & Terminating HV Conductors into Transformers

Compression (crimp) connectors are an established method of connecting and terminating low voltage and high voltage stranded copper cable conductors onto tranformers when suitably crimped using Cembre hydraulic crimping tools and correct die sets. Cembre manufacture high voltage HV cable lugs for 11kV and 33kV cable termination - this includes single hole, two hole, extended palm and 4 hole cable lugs in copper, aluminium and bi-metallic type.
