CATU Lockout / Tagout Solutions - Valve Lockers

CATU Lockout / Tagout Solutions

CATU Valve Lockers

CATU Electrical Safety Equipment





CATU valve lockers prevent any handling and lock "quarter turn" or gate valves. CATU padlock locking can be customised using pens. CATU lockout / tagout valve lockers range includes the following:

CATU Lockout / Tagout Valve Lockers - Models For Gate Valves

Polyurethane. Easy to install with the two articulated parts*. Padlock locking. Prevents any handling of the gate valve.

Pictured: CATU Lockout / Tagout Valve Lockers - Models For Gate Valves

CATU Reference	Hole Diameter	Number Of Locks	Gate Diameter	Ext. Diameter	Weight
CATU HT-100	6mm	1	25mm - 63.5mm	70mm	45g
CATU HT-101	8mm	2	63.5mm - 127mm	140mm	170g
CATU HT-102	9mm	3	127mm - 165mm	172mm	250g
CATU HT-103	9mm	3	165mm - 254mm	260mm	505g
CATU HT-104	9mm	3	254mm - 355mm	370mm	1055g
CATU HT-105	9mm	1**	25mm - 165mm	-	225g

*Except HL-105, 2 parts **4 position settings

CATU Lockout / Tagout Valve Lockers - Models For 1/4 Turn Valves

Polyurethane. Easy to adjust with the two clip-in parts Padlock locking that prevents any quarter turn handling.

Pictured: CATU Lockout / Tagout Valve Lockers - Models For 1/4 Turn Valves

CATU Reference	Hole Diameter	Number Of Locks	Locking	Length	Weight
CATU HL-200	7mm	1 (8 positions)	9.5 - 31.75	195mm	155g
CATU HL-201	7mm	1 (13 positions)	38.1- 63.5	254mm	230g
CATU HL-202	9mm	1 (12 positions)	50.8 - 203.2	430mm	580g

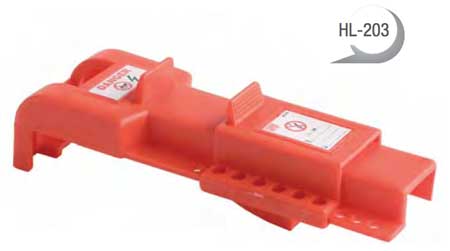

CATU Lockout / Tagout Valve Lockers - Universal Model

Polypropylene. For locking all types of valves: 1/4 turn, butterfly, etc.

Pictured: CATU Lockout / Tagout Valve Lockers - Universal Model

CATU Reference	Hole Diameter	Number Of Locks	Locking	Length	Weight
CATU HL-203	9mm	1 (9 positions)	95 à 255	300mm	285g
