Roxtec RS OMD Cable Transit Frame

Cable Transits - Roxtec Round

Cable & Pipe Seals

Roxtec C RS T Transit Frame

Roxtec RS OMD Seals are round seals with removable layers both on the inside and outside.

Roxtec Multidiameter technology enables the RS OMD variations to be suitable both for cables or pipes inside the seal and for the fit on the outside to the pipe sleeve or the hole.

Pictured: Roxtec RS OMD Cable Transit Frame

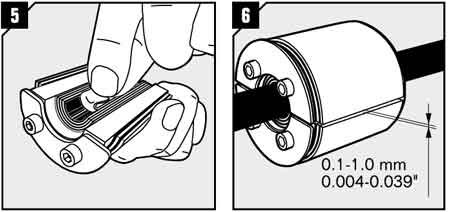

Pictured : Installation of Roxtec Cable Transit Frame RS OMD Type

5. Adapt the cable seal to the cable or pipe by peeling off layers from the halves until you reach the gap seen in Pic.6. The halves may not differ by more than one layer.

6. Try to achieve a 0.1-1.0mm gap between the two halves when held against the cable or pipe.
