Roxtec SF Cable Transit Frame

Cable Transits - Roxtec Rectangular

Cable & Pipe Seals

Roxtec Swan Neck Transit Frame

The Roxtec SF frame is identical to the Roxtec S frame, except it has a 60 millimetre (2.362") wide flange. The flange helps simplify welding to unprecise holes, or enables the cable transit frame to be bolted to the construction.

On bolting Roxtec recommend the use of a TSL sealing strip. For an EMC solution Roxtec recommend SF frame in acid proof stainless steel.The Roxtec SF Frame is available in mild steel, acid proof stainless steel, and aluminium.

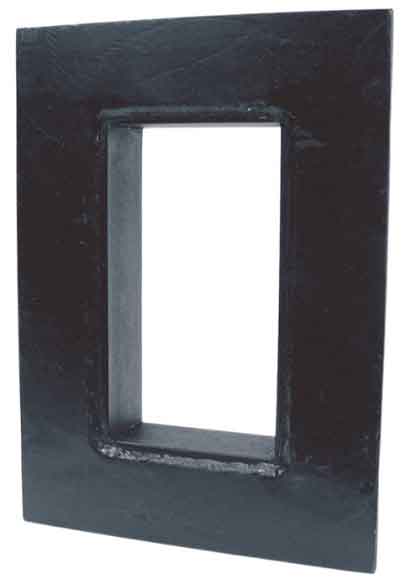

Pictured: Roxtec SF Cable Transit Frame

Pictured : Installation of Roxtec Cable Transit Frame SF Type

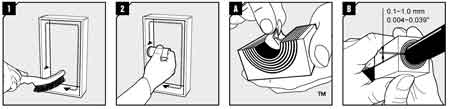

1. Make sure that all inside surfaces of the frame are free from dust or dirt.

2. Lubricate the inside surfaces with Roxtec Lubricant, especially into the corners.

A. Adapt modules which are to hold cables or pipes by peeling off layers until you reach the gap seen in pic. B. The halves may not differ by more than one layer

B. Achieve a 0.1-1.0 mm gap between the two halves when held against the cable/pipe.
