Roxtec SBTB Transit Frame

The Roxtec SBTB (Back-To-Back) cable transit frame is a combination of two regular Roxtec S frames with a spacing distance in between.

The total depth of the Roxtec SBTB transit frame is 200mm. This cable transit frame type is used as an extra level of protection, such as in H class fire rated environments, or when tightness after installation should be verified by adding overpressure in the cavity in between the different frames, attached by welding and for use with Roxtec RM cable and pipe sealing modules.

Roxtec SBTB transit frames are available in primed mild steel.

Pictured : Roxtec SBTB Cable Transit Frame

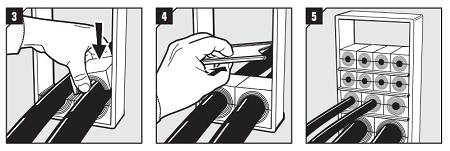

Pictured : Installation of Roxtec Cable Transit Frame SBTB Type

3. Insert the modules according to your installation plan (transit plan). It is recommended to seal cables/ pipes at the bottom of the frame and put spare modules on top.

4. Insert a stayplate on top of every finished row of modules.

5. Continue to fill up the packing space of the frame, until one final row is left. See pictures “Packing space” for the full size of the space.

Roxtec SBTB Cable Transit Frame

Frame	For No openings	Packing Space (mm)	External Dimensions		Weight
			HxW (mm)	HxW (in)	(kg)	(lb)
SBTB 2x1 primed	1	60 x 120	121 x 141	4.764 x 5.531	7.2	15.939
SBTB 2x2 primed	2	60 x 120	121 x 271	4.764 x 10.669	12.0	26.389
SBTB 2x3 primed	3	60 x 120	121 x 402	4.764 x 15.827	16.7	36.839
SBTB 2x4 primed	4	60 x 120	121 x 532	4.764 x 20.945	21.5	47.289
SBTB 4x1 primed	1	120 x 120	180 x 141	7.087 x 5.531	8.9	19.709
SBTB 4x2 primed	2	120 x 120	180 x 271	7.087 x 10.669	14.2	31.372
SBTB 4x3 primed	3	120 x 120	180 x 402	7.087 x 15.807	19.5	43.034
SBTB 4x4 primed	4	120 x 120	180 x 532	7.087 x 20.945	24.8	54.697
SBTB 4x5 primed	5	120 x 120	180 x 663	7.087 x 26.083	30.1	66.359
SBTB 4x6 primed	6	120 x 120	180 x 793	7.087 x 31.220	35.4	78.022
SBTB 6x1 primed	1	180 x 120	238 x 141	9.370 x 5.531	10.6	23.479
SBTB 6x2 primed	2	180 x 120	238 x 271	9.370 x 10.669	16.5	36.354
SBTB 6x3 primed	3	180 x 120	238 x 402	9.370 x 15.807	22.3	49.229
SBTB 6x4 primed	4	180 x 120	238 x 532	9.370 x 20.945	28.2	62.104
SBTB 6x5 primed	5	180 x 120	238 x 663	9.370 x 26.083	34.0	74.979
SBTB 6x6 primed	6	180 x 120	238 x 793	9.370 x 31.220	39.9	87.854
SBTB 8x1 primed	1	240 x 120	298 x 141	11.732 x 5.531	12.4	27.337
SBTB 8x2 primed	2	240 x 120	298 x 271	11.732 x 10.669	18.8	41.469
SBTB 8x3 primed	3	240 x 120	298 x 402	11.732 x 15.807	25.2	55.579
SBTB 8x4 primed	4	240 x 120	298 x 532	11.732 x 20.945	31.6	69.710
