Roxtec CF8 Transit Frame



The Roxtec CF8 cast aluminium frame is suitable for compact installations in cabinets. The compression is integrated in the frame. CF8 can accommodate up to 15 cables, is attached by bolting, for use with CM components, and available in kits.

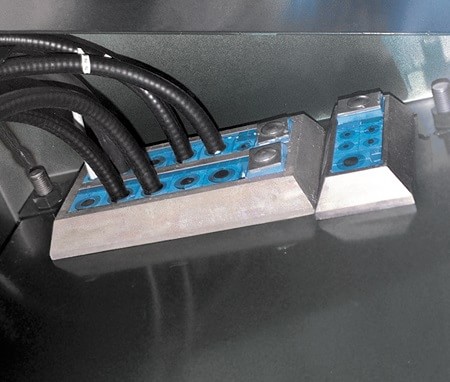

Pictured: Roxtec CF8 Cable Transit Frame

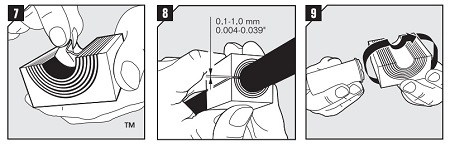

Pictured : Installation of Roxtec Cable Transit Frame CF8 Type



7. Adapt modules which are to hold cables or pipes by peeling off layers until you reach the gap seen in pic. 8 The halves may not differ by more than one layer.

8. Achieve a 0.1-1.0 mm gap between the two halves when held against the cable/pipe.

9. Lubricate all modules for the frame thoroughly, both the inside and the outside surfaces.

Roxtec CF8 Cable Transit Frame

Parts	For No openings	Packing Space (mm)	External Dimensions		Weight
			HxW (mm)	HxW (in)	(kg)	(lb)
CF 8	1	40x80	140 x 75	5.512 x 2.952	0.6	1.323
