Roxtec B Transit Frame



Roxtec cable transit B frame is an openable metal frame that is bolted together from hot dip galvanised steel parts to form different sizes and combinations of openings. This cable transit frame is designed primarily for retrofits in buildings where it is important to be able to seal around existing cables and pipes.

Roxtec B cable transit frame has a 40 millimetre (1.575") flange and is intended to be cast into a wall or partition and is for use with Roxtec RM cable and pipe sealing modules.

Roxtec B frames are available in galvanised mild steel.

Casting mould accessory available.

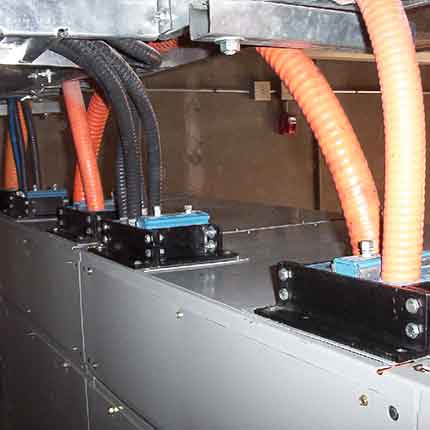

Pictured - Cable Transits. Roxtec B Frame Sealing Solutions For Cabinets & Enclosures.

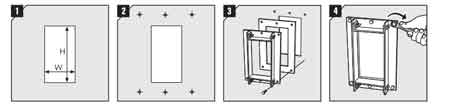

Pictured : Installation of Roxtec Cable Transit Frame B Type

Bolting of Roxtec Cable Frames

1. Mark a rectangular opening according to transit frame type

2. Use the transit frame as a template for the drilling of the screw holes

3. Attach the transit frame to the cabinet/wall using bolts and nuts. Optional rubber gasket can be placed between the frame and the cabinet wall

4. Tighten the screws

Roxtec B Cable Transit Frame

Parts	Packing Space (mm)	External Dimensions (D=60mm)		Weight
		HxW (mm)	HxW (in)	(kg)	(lb)
Longside size 2 galv	height=60	181 x 40	7.126 x 1.575	0.8	1.653
Longside size 4 galv	height=120	240 x 40	9.449 x 1.575	1.0	2.094
Longside size 6 galv	height=180	298 x 40	11.732 x 1.575	1.2	2.645
Longside size 8 galv	height=240	358 x 40	14.016 x 1.575	1.4	3.196
Part.wall size 2 galv	height=60	181 x 8	7.126 x 0.315	0.7	1.543
Part.wall size 4 galv	height=120	240 x 8	9.449 x 0.315	0.9	1.984
Part.wall size 6 galv	height=180	298 x 8	11.732 x 0.315	1.2	2.535
Part.wall size 8 galv	height=240	358 x 8	14.016 x 0.315	1.4	3.086
Shortside 120 galv*	width=120	120 x 40	4.724 x 1.575	0.6	1.323



 *Including 4 bolts and 4 nuts

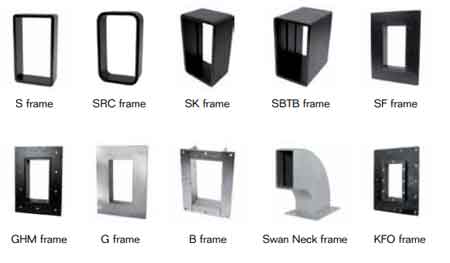

Pictured : Cable Transits - Roxtec Frames Rectangular Overview



Roxtec cable transit frames provide rectangular sealing frames for cables and pipes ensuring safety, efficiency and long-term operational reliability - Roxtec cable and pipe seals protect against fire, gas, water, dusts, pests, blast load and electromagnetic interference.
