Nexans (Euromold) Surge Arrester 400PB-XSA 33kV-36kV Ur Rated Voltage

Nexans Euromold High Voltage Surge Arresters

For High Voltage Electrical System Protection

Nexans Euromold 400PB-XSA Surge Arresters

Interface C 33kV-36kV



Nexans Euromold 400PB is a screened surge arrester designed to protect medium voltage components, including transformers, equipment, cable and accessories from high voltage surges resulting from lightning or switching - specified to terminate and connect medium/high voltage cables in the following voltage classes:

• 6/10 (12kV)
• 6.35/11 (12kV)
• 8.7/15 (17.5kV)
• 12/20 (24kV)
• 12.7/22 (24kV)
• 18/30 (36) kV
• 19/33 (36) kV
• 20.8/36 (42) kV

Nexans Euromold 400PB-XSA - 33kV-36kV Surge Arresters for High Voltage Cable Systems

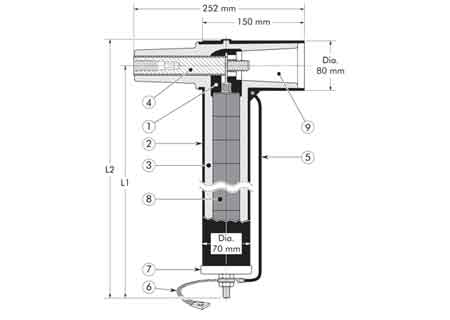

Nexans Euromold 400PB-XSA Screened Surge Arrester Design

1. Conductive EPDM insert
2. Conductive EPDM jacket
3. Insulating EPDM layer moulded between the insert and the jacket
4. Contact rod
5. Earth lead
6. Earth connection
7. Steel cap
8. Metal oxide valve elements
9. Type C - 630 A interface as described by CENELEC EN 50180 and 50181



Nexans (Euromold) 400PB-XSA HV Surge Arrester Technical Data

Surge Arrester Type	Nominal Dis-charge Current​	Rated Voltage	Max Contin-uous Operating Voltage	Steep Current Residual Voltage @ 5kA	Lightning Current Residual Voltage @ 5kA	High Current Impulse With-stand	Dimen-sions
	In	Ur	Uc				L1	L2
Nexans 400-5SA-15L	5kA	15kV	12kV	47.1kV	38.9kV	65kA	250 mm	290 mm
Nexans 400-5SA-18L	5kA	18kV	14.4kV	56.5kV	46.7kV	65kA	250 mm	290 mm
Nexans 400-5SA-22L	5kA	22kV	17.6kV	69.2kV	57.1kV	65kA	350 mm	390 mm
Nexans 400-5SA-24L	5kA	24kV	19.2kV	75.2kV	62.1kV	65kA	350 mm	390 mm
Nexans 400-5SA-30L	5kA	30kV	24kV	94kV	77.6kV	65kA	350 mm	390 mm
Nexans 400-10SA-15N	10kA	15kV	12kV	48.1kV	39.7kV	100kA	350 mm	290 mm
Nexans 400-10SA-18N	10kA	18kV	14kV	58.1kV	48kV	100kA	250 mm	290 mm
Nexans 400-10SA-22N	10kA	22kV	17.6kV	70.1kV	57.9kV	100kA	250 mm	390 mm
Nexans 400-10SA-24N	10kA	24kV	19.2kV	77kV	63.6kV	100kA	350 mm	390 mm
Nexans 400-10SA-30N	10kA	30kV	24kV	97kV	80.1kV	100kA	350 mm	390 mm
Nexans 400-10SA-36N​	10kA	36kV	28.8kV	115.9kV	95.7kV	100kA	350 mm	390 mm
Nexans 400-10SA-45N​	10kA	45kV	36kV	144.1kV	119kV	100kA	450 mm	490 mm
