Roxtec S Transit Frame

Roxtec cable transit S frame is a metal frame attached by welding and for use with Roxtec RM cable and pipe sealing modules. Roxtec S frames are available in primed mild steel, stainless steel and aluminium as a single opening and in combinations with several openings in width or height.

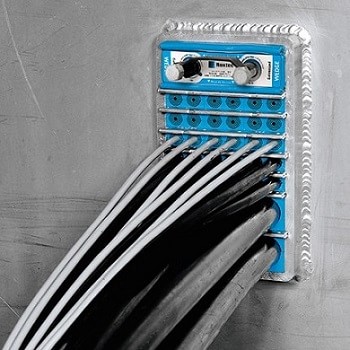

Pictured : Roxtec S Cable Transit Frame

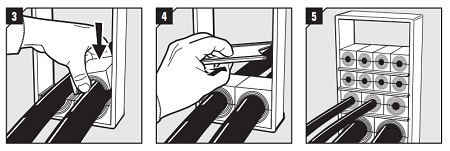

Pictured : Installation of Roxtec Cable Transit Frame S Type

3. Insert the modules according to your installation plan (transit plan). It is recommended to seal cables/ pipes at the bottom of the frame and put spare modules on top.

4. Insert a stayplate on top of every finished row of modules.

5. Continue to fill up the packing space of the frame, until one final row is left. See pictures “Packing space” for the full size of the space
