Roxtec G Transit Frame

The Roxtec G frame is a flanged metal frame, available with a single opening or in combination with several openings in width and/or height, and can be cast, welded or bolted into place. For use with Roxtec RM cable and pipe sealing modules.

Roxtec G frames are available in galvanised or primed mild steel, and acid proof stainless steel. Casting mould accessory available. GE extension frame accessory available for thick wall penetrations.

Pictured: Roxtec G Cable Transit Frame

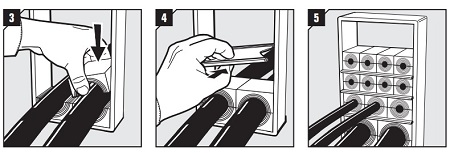

Pictured : Installation of Roxtec Cable Transit Frame G Type

3. Insert the modules according to your installation plan (transit plan). It is recommended to seal cables/ pipes at the bottom of the frame and put spare modules on top.

4. Insert a stayplate on top of every finished row of modules.

5. Continue to fill up the packing space of the frame, until one final row is left. See pictures “Packing space” for the full size of the space
