Ripley Utility Tool RMS - Remote Mid-Span Cable Stripper

Ripley Tools

Overhead Primary Distribution Cable Preparation Tools

Ripley RMS

Remote Mid-Span Stripper

Ripley RMS remote mid-span stripper is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley RMS is able to remove safely and quickly the insulation from the tree wire and spacer cable with cable ODs of 15.24 to 44.45mm and voltages of 15 KV to 34.5 KV. The tool can be operated by one person and has the capability of a mid-span strip at any phase without removing the conductor from spacers.

The head of the RMS tool is covered by an insualted Delrin housing and has an insulated stick and epoxy shaft connected to the head to the gearbox,

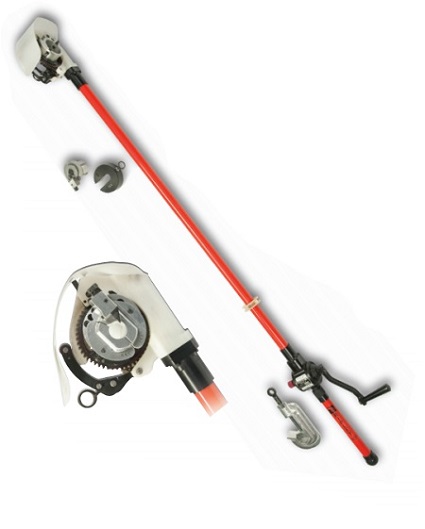

Pictured: Ripley Utility Tool RMS Remote Mid-Span Cable Stripper

Ripley RMS - Remote Mid-Span Cable Stripper Specifications:

• Each cable size requires a separate bushing (each comes with a wire gauge to ensure correct brushing is used on wire)
• Length and weight varies according to customer specifications – for a 4’ model, overall length is 73” (1.85 m) and weight is 11 lbs (5 Kg)
• Made in the U.S.A.
