Indoor 3 Core
XLPE 6.6kV-11kV-33kV Cables
Nexans SRDI
Nexans heat shrink cable termination kits (SRDI) are suitable for terminating high voltage 3 core power cables - Nexans terminations are suitable for indoor applications, such as air insulated high voltage cable end termination boxes.
Nexans Cable Termination Kits - Heat Shrink Termination Kit List
Suits 6.6kV 11kV 12kV 15kV 17kV 24kV 33kV Cables - 3 Core
3 Core

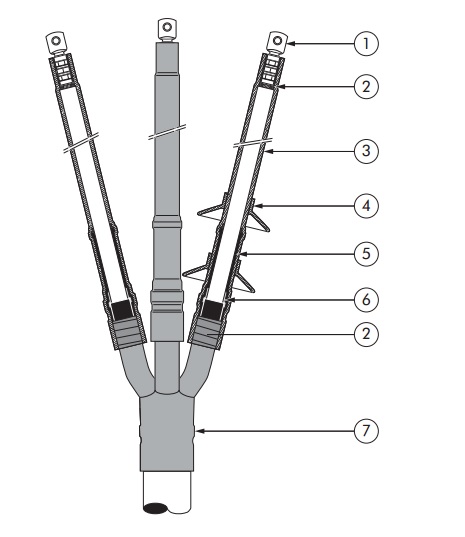

Pictured: Nexans Heat Shrink Terminations Indoor 3 Core XLPE 6.6kV-11kV-33kV - Nexans SRDI
Nexans heat shrink cable termination kits for indoor 3 core polymeric (XLPE or EPR) insulated power cables are suitable for the following high voltage cable classes : 6/10 (12kV), 6.35/11 (12kV), 8.7/15 (17.5kV), 12/20 (24kV), 12.7/22 (24kV), 18/30 (36kV) and 19/33 (36kV).
Nexans high voltage heat shrink cable terminations meet the requirements of CENELEC HD 629.1 and IEC 60502-4.
Nexans Heat Shrink Cable Terminations 11kV-33kV
3 Core Cables
SRDI - 11kV 35-70sqmm, 95-240sqmm, 240-500sqmm
SRDI - 33kV 70-120sqmm, 150-240sqmm, 240-400sqmm
Nexans Cable Termination Type | Voltage Class (Um) | 12kV | (17kV&) 24kV | 36kV |
Nexans SRDI Heat Shrink Indoor 3 Core |
Cable Conductor sqmm |
35-70sqmm 95-240sqmm 240-500sqmm |
35-70sqmm 95-185sqmm 240-400sqmm |
70-120sqmm 150-240sqmm 240-400sqmm |
Nexans Heat Shrink Cable Terminations 11kV-33kV Catalogue
Nexans Heat Shrink Terminations Indoor 3 Core XLPE 6.6kV-11kV-33kV - Nexans SRDI
