Lucy Heavy Duty Cut-out - MC630

Lucy Heavy Duty Cut-outs

Lucy Switchgear MC630 HDCO



Lucy Switchgear MC630 Heavy Duty Cut-out (HDCO) is rated up to 630amp, accepts BS88 J type fuse links, fuse carriers with 92mm centres and low voltage cable termination up to 300sqmm (copper or aluminium).

Lucy MC630 cutout is available in either single phase or three phase type.

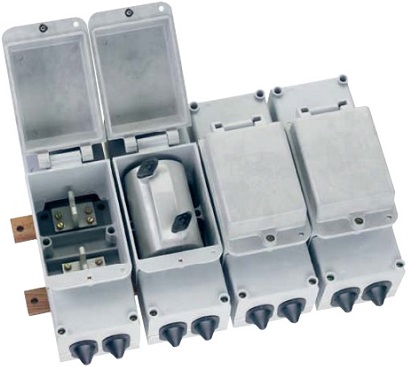

Pictured: Lucy Heavy Duty Cut-out - MC630

Lucy Heavy Duty Cut Outs : HDC 200/400/600

• Accepts BS 88 J type fuse links
• Cut out ratings 200A/300A/400A/600A
• Fuse carriers with 83mm or 92mm centres
• Moulded in off-white glass filled polyamide
• Cut out accepts up to 300sqmm aluminium or copper conductors

Lucy Heavy Duty Cut Outs : MC300

• Accepts BS 88 J Type fuse links
• Cut out maximum rating 300A
• Fuse carrier with 83mm centres
• Moulded in white glass filled polyester thermoset material
• All cut out contacts manufactured from solid brass section
• 3 types of cable termination up to 185sqmm


Lucy Switchgear Low Voltage Cut Outs & Fusegear

Lucy Switchgear low voltage switching, protection and fusegear for LV electrical distribution includes street lighting cut outs(single pole SNE), house service cut outs, heavy duty (200A, 300A, 400A, 600A) cut outs, pole mounted cut outs, ABC boxes, and vertical busbar arrangements (Lucy MSDB vertical and Lucy MSDB horizontal types).

Heavy Duty Cut Outs HDCO 200A, 400A, 600A



T&D offer Lucy House Service Cut Outs Both Single & Triple Phase 60A 80A 100A.

Lucy Switchgear Low Voltage Cutouts - Catalogue

Lucy Switchgear MC630 Heavy Duty Cutout - 630amps
