3M Scotchcast LR hazardous area power cable joints are suitable for XLPE, EPR and PILC cables with steel wire armour (SWA) or galvanised steel wire braid (GSWB), 0.6/1kV and up to 3.3kV.

3.3kV Cable Jointing. Up-rating 3M Scotchcast resin cable joints for connecting unscreened 3.3kV power cables is achieved by increasing the Scotch 23 self-amalgamating tape to 5 half-lapped layers over each connector.

For smaller cables where pre-insulated connectors are used, it is not required to cover the connectors with Scotch 23 tape.

3M LR Scotchcast cable joints are also suitable for lead sheathed cables (XLPE and PILC) and transition cable joints.

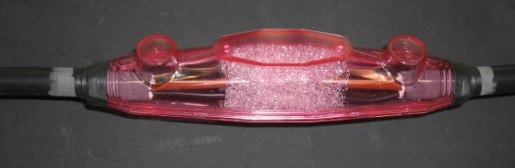

Pictured: Power Cable Joints for Hazardous Areas (Zone 1 & 2)

Power Cable Joints for Hazardous Areas (Zone 1 & 2)

3M Part Ref	Cable Diameter Min & Max (mm)	To Suit Diameter Over Lead Sheath Min & Max (mm)	To Suit Diameter Over Armour Min & Max (mm)
LR20	14mm & 32mm	9mm & 15mm	9mm & 15mm
LR21	14mm & 32mm	9mm & 15mm	14mm & 22mm
LR30	23mm & 37mm	9mm & 15mm	14mm & 22mm
LR31	23mm & 37mm	14mm & 22mm	14mm & 22mm
LR32	23mm & 37mm	14mm & 22mm	18.5mm & 29mm
LR40	28mm & 51mm	14mm & 22mm	18.5mm & 29mm
LR41	28mm & 51mm	18.5mm & 29mm	18.5mm & 29mm
LR42	28mm & 51mm	18.5mm & 29mm	23.5mm & 37mm
LR43	28mm & 51mm	23.5mm & 37mm	23.5mm & 37mm
LR50	33mm & 60mm	18.5mm & 29mm	23.5mm & 37mm
LR51	33mm & 60mm	23.5mm & 37mm	23.5mm & 37mm
LR52	33mm & 60mm	23.5mm & 37mm	31mm & 50mm
LR53	33mm & 60mm	31mm & 50mm	31mm & 50mm
LR60	48mm & 60mm	23.5mm & 37mm	31mm & 50mm
LR61	48mm & 60mm	31mm & 50mm	31mm & 50mm
LR62	48mm & 80mm	31mm & 50mm	44mm & 70mm
LR70	45mm & 90mm	31mm & 50mm	31mm & 50mm
LR71	45mm & 90mm	31mm & 50mm	44mm & 70mm
LR72	45mm & 90mm	44mm & 70mm	44mm & 70mm
LR80	45mm & 100mm	44mm & 70mm	44mm & 70mm
LR81	45mm & 100mm	44mm & 70mm	58mm & 94mm

3M Scotchcast No. 1400U resin cable joints are flame retardant with excellent long term resistance against hydrocarbons.

Suitable for areas where there is a danger of gas, oil, sewage or chemical spillage including Zones 1 & 2 Hazardous Areas.

Cable joints do not come under ATEX 94/9/EC because they are part of the cabling system - cables are not certified for use in hazardous areas but the requirements for suitable cables and joints are dealt with in EN IEC60079-14 Installation in Hazardous Areas.

Effectively this means they are covered under good practice under the DSEAR (ATEX 137) regulations - SIRA Certification Statment Ex Products Manager 2008.
