Ellis Patents Emperor Cable Cleats
Ellis Patents ES51-59
Suits 51-59mm Cables in Single
Ellis Patents ES51-59 Emperor cable cleats are available for single cable applications where the highest levels of short circuit withstand are required.
ES51-59 cable cleats are manufactured from 316L stainless steel offering the ultimate protection against the harshest environmental conditions and are suitable for 51-59mm cable diameters.

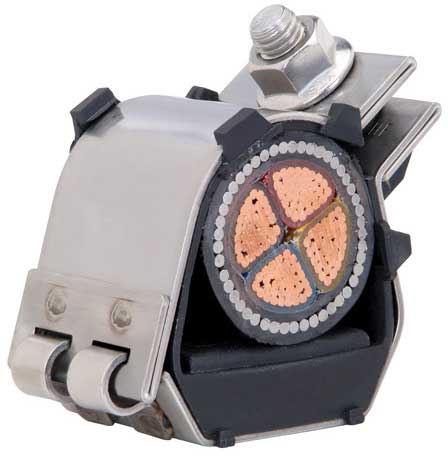

Pictured: Ellis Patents ES51-59 Emperor Single Cable Cleat
Part Number | Cable Range | Dimensions | Weight | |||||
Min Dia mm | Max Dia mm | W mm | H mm | D mm | P mm | Fixing Holes | ||
ES51-59 | 51 | 59 | 103 | 102 | 54 | 25 | 2 x M10 & 1 x M12 | 490g |

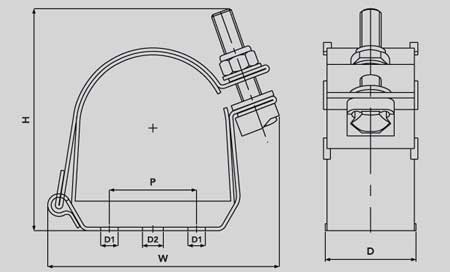

Pictured: Ellis Patents ES51-59 Emperor Single Cable Cleat - Dimensions Illustration
Ellis Patents ES51-59 Emperor Single Cable Cleat - Installation Instructions
Ellis Patents ES51-59 Emperor Single Cable Cleat - Spec Sheet
